Displaying Port Power status

Use the Power Port Status page to display the current PoE power status
for all ports.
Command Attributes
• Port – The port number.
• Admin Status – The administrative status of PoE power on the port.
(Default: Enabled)
• Mode – The current operating status of PoE power on the port.
(On or off.)
• Power Allocation – The configured power budget for the port.
(Range: 3000-15400 milliwatts; Default: 15400 milliwatts)
• Power Consumption – The current power consumption on the port.
• Priority – The port's configured power priority setting.
(Options: low, high, or critical; Default: Low)
Web – Click PoE, followed by Power Port Status.
P
OWER

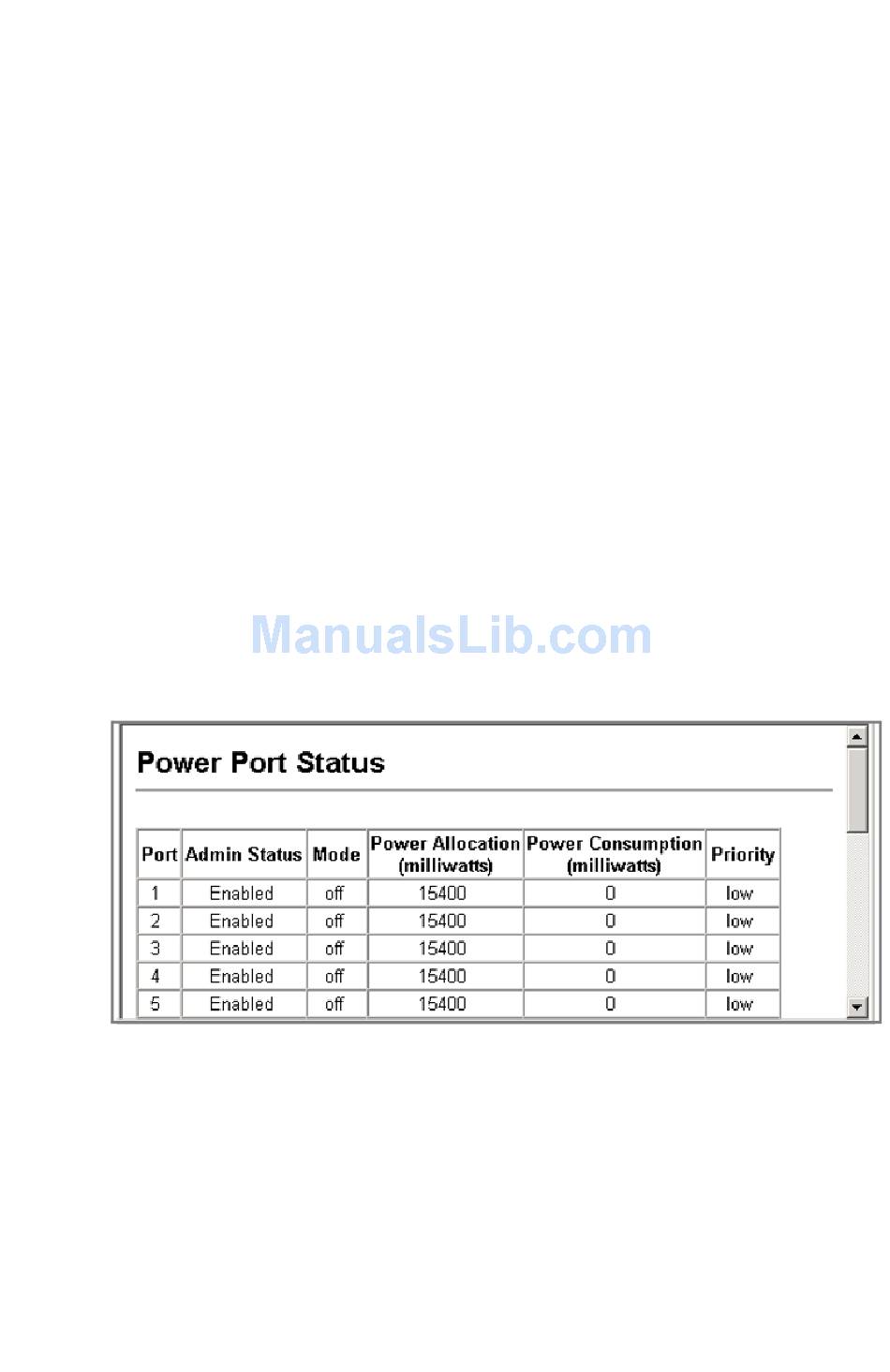

Figure 3-61 Displaying Port PoE Status
O E
VER THERNET
C
ONFIGURATION
3-139
