B
C
ASIC
ONFIGURATION
Web – Click System, File, Copy. Select "tftp to file" from the drop-down
menu. Select "opcode" as the file type, then enter the IP address of the
TFTP server and the source and destination file names. Click Apply.

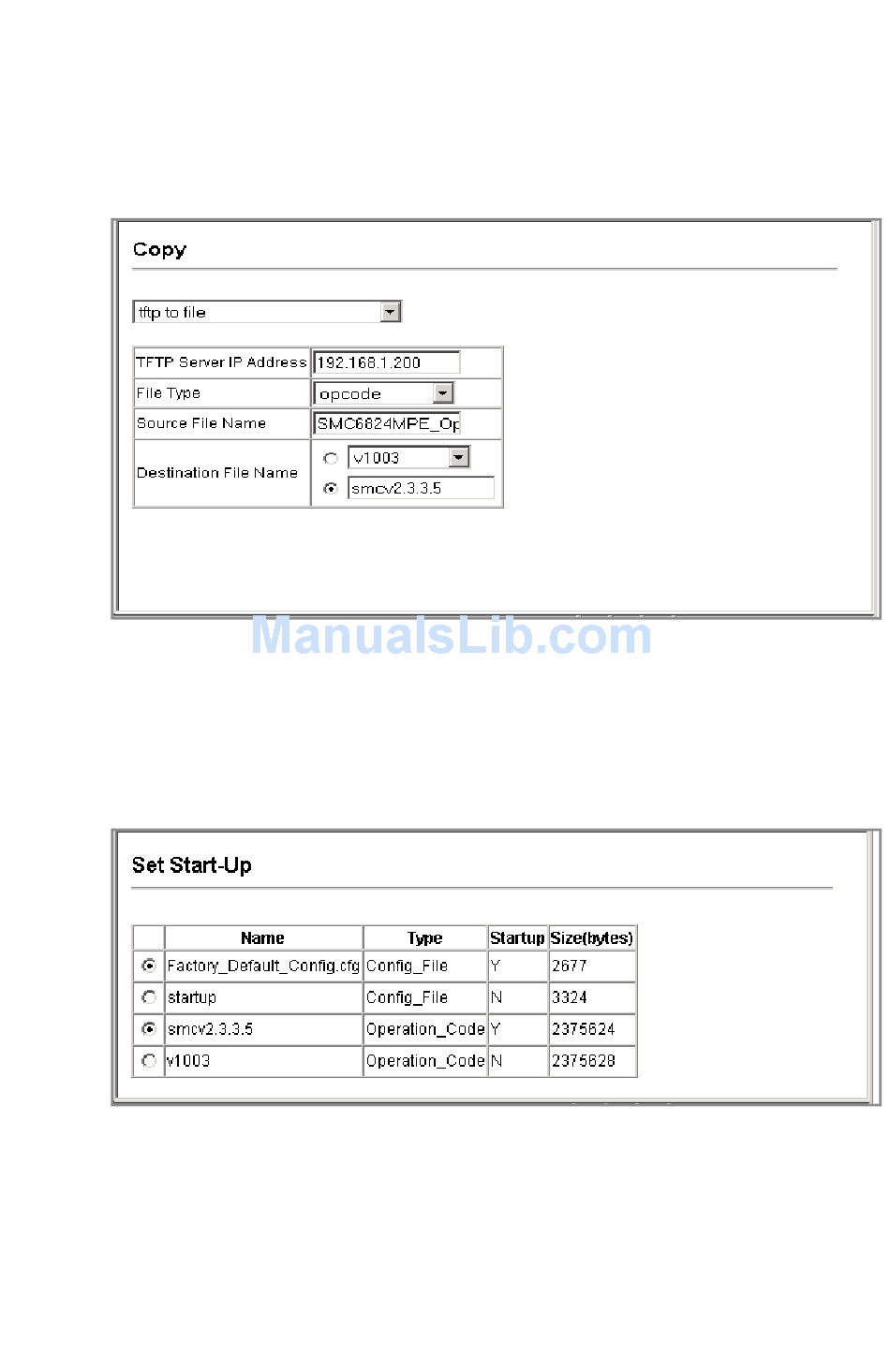

Figure 3-8 Copy Firmware

If you download to a new destination file, click System, File, Set Start-Up,
select the file to be used at startup, and click Apply. To start the new
firmware, reboot the system via the System/Reset menu.

Figure 3-9 Select Start-Up File

3-23
