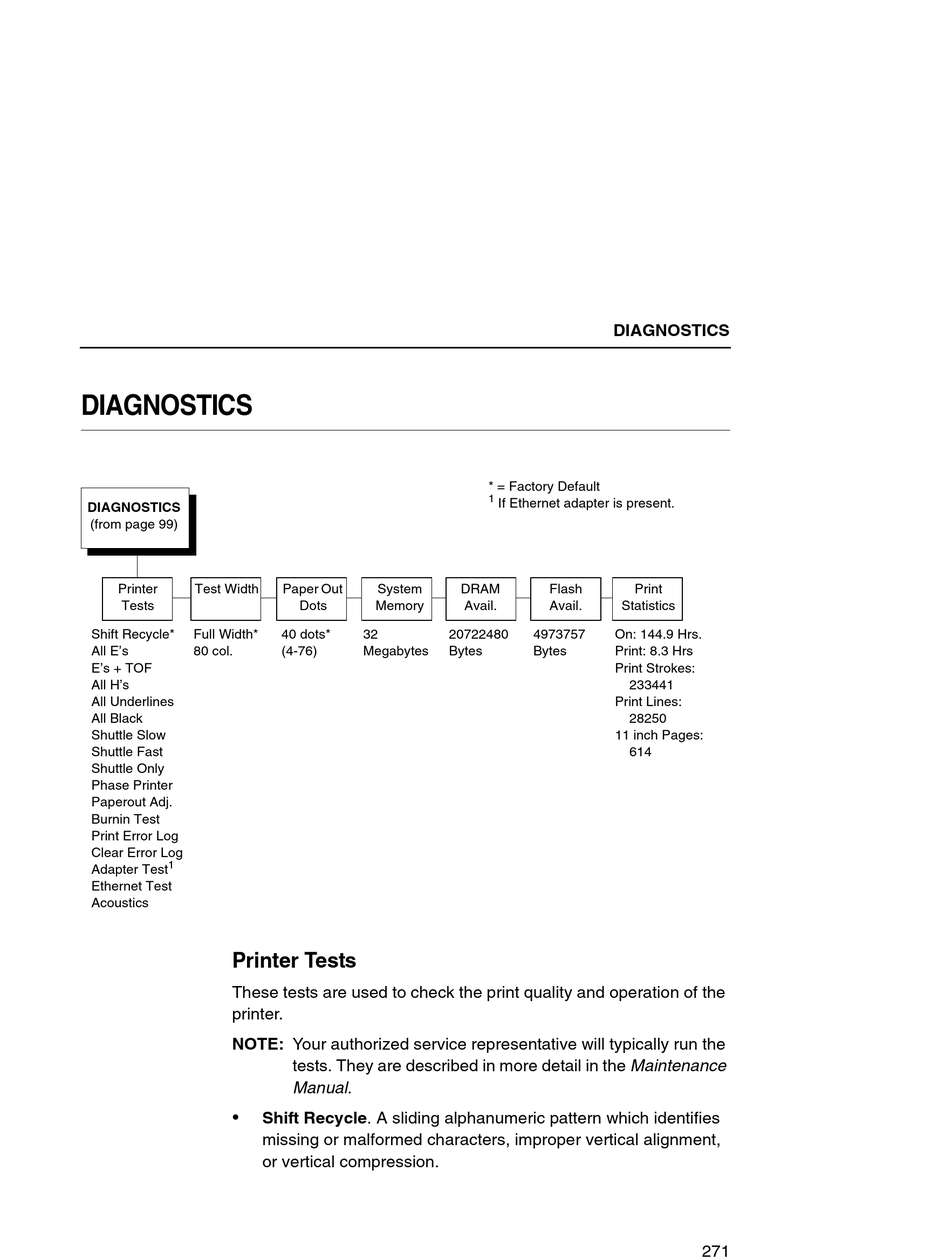

DIAGNOSTICS

DIAGNOSTICS
(from page 99)
Printer Test Width
Tests
Shift Recycle* Full Width*
All E's 80 col.
E's + TOF
All H's
All Underlines
All Black
Shuttle Slow
Shuttle Fast
Shuttle Only
Phase Printer
Paperout Adj.
Burnin Test
Print Error Log
Clear Error Log
1
Adapter Test
Ethernet Test
Acoustics

Printer Tests

These tests are used to check the print quality and operation of the
printer.
NOTE: Your authorized service representative will typically run the
•
Paper Out System
Dots Memory
40 dots* 32
(4-76) Megabytes
tests. They are described in more detail in the Maintenance
Manual .
Shift Recycle. A sliding alphanumeric pattern which identifies
missing or malformed characters, improper vertical alignment,
or vertical compression.
DIAGNOSTICS
ETHERNET PARAMS
* = Factory Default
1
If Ethernet adapter is present.
DRAM Flash
Avail. Avail. Statistics
20722480 4973757 On: 144.9 Hrs.
Bytes Bytes Print: 8.3 Hrs
Print Strokes:
Print Lines:
11 inch Pages:
Print
233441
28250
614
271
