Printronix P5005B User Manual page 51

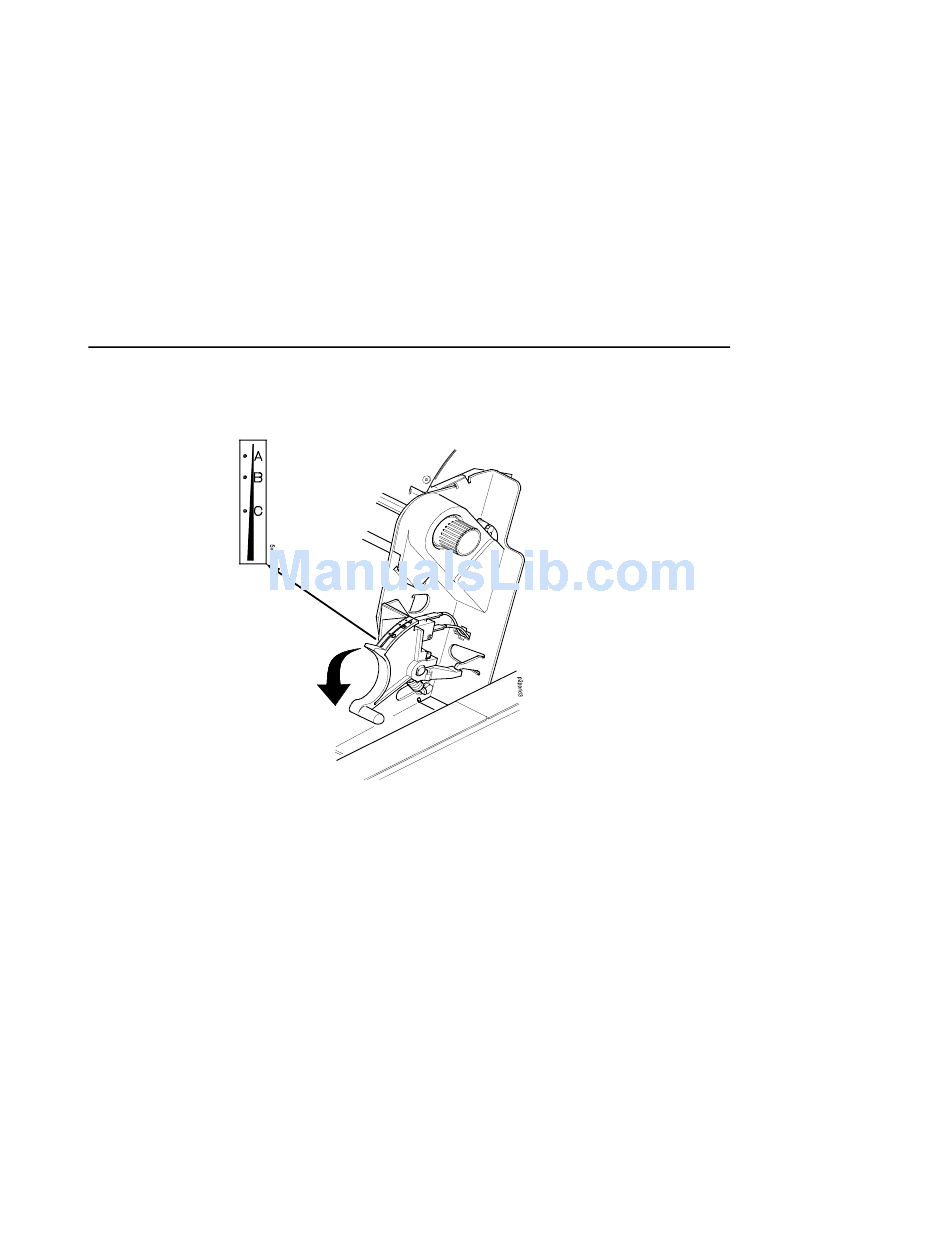

Figure 33. Set the Forms Thickness Lever based on the Paper Thickness
13. Lower the forms thickness lever, and set it to match the paper
thickness. (The A-B-C scale corresponds approximately to
1-, 3-, and 6-part paper thickness.)
NOTE: Do not set the forms thickness lever too tightly; excessive
friction can cause paper jams, ribbon jams (with potential
for ribbon damage), smeared ink, or wavy print.
14. For pedestal models with the Quick Access Cover, see Figure
29 on page 47 for paper exiting options. For all other pedestal
models, manually feed the paper through the rear paper exit by
using the vertical position knob.
NOTE: For cabinet models with the power paper stacker installed,
go to "SureStak Power Paper Stacker" in the next section.
For all other cabinet models, go to "Set The Top-Of-Form"
on page 59.
Load The Paper
51
