Chapter 2
Connect The Interface And Power Cables

Pedestal Models

Parallel
Connector
Serial Connector

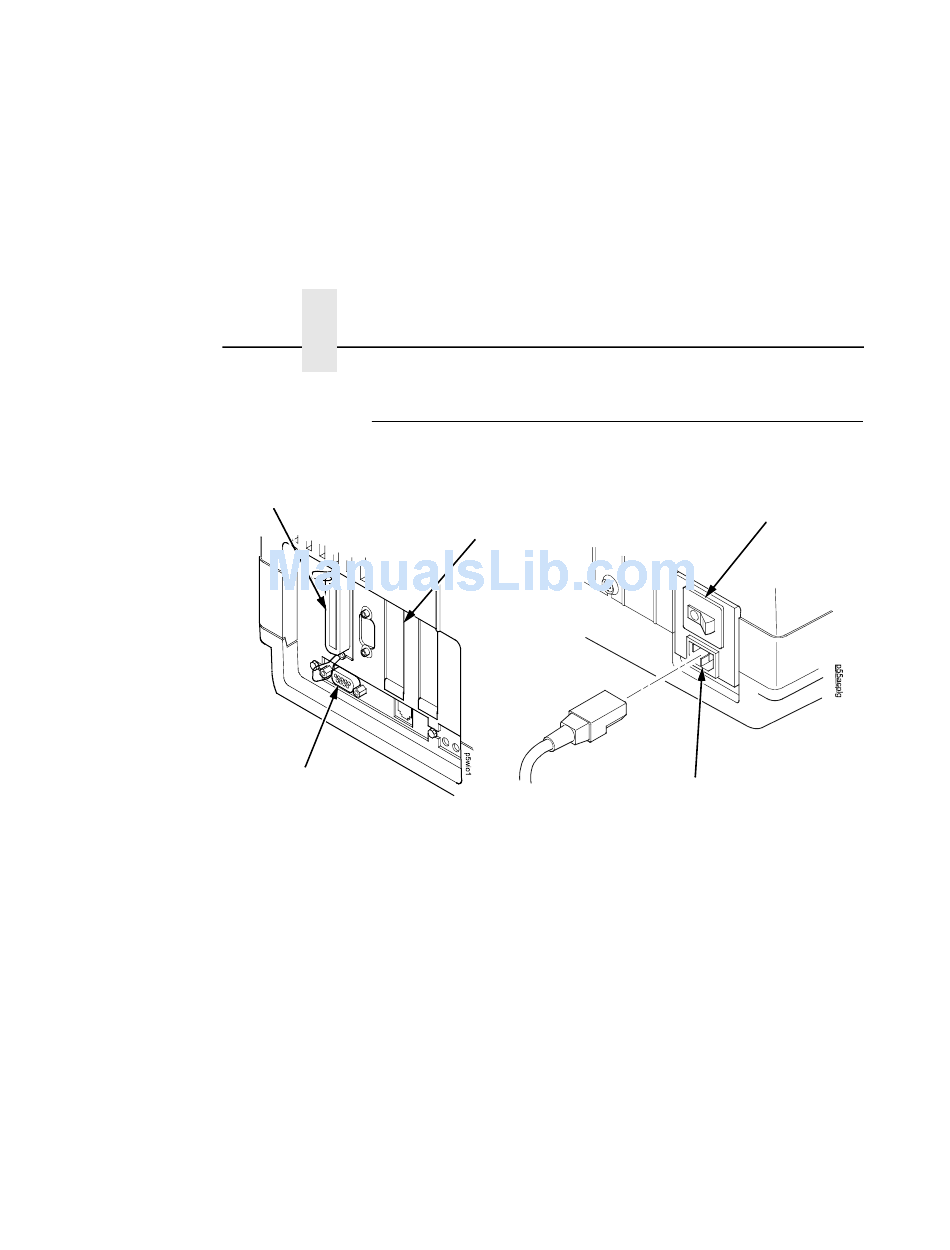

Figure 21. Attaching the I/O Cable Connector and AC Power Connector
1. Make sure the printer power switch is set to O (Off).
2. Remove the cover from the I/O connector you have selected.
3. Attach the I/O cable connector to the printer interface
connector.
4. Plug the power cord into the printer AC power connector, then
into the AC power outlet.
40
Auxiliary I/O
Power Switch
AC Power Connector
