I Function Display - Icom IC-2200H Instruction Manual

1
PANEL DESCRIPTION

I Function display

q
w
e
MUTE
r NAR
MID
t
LOW
LOCK
y
S ET

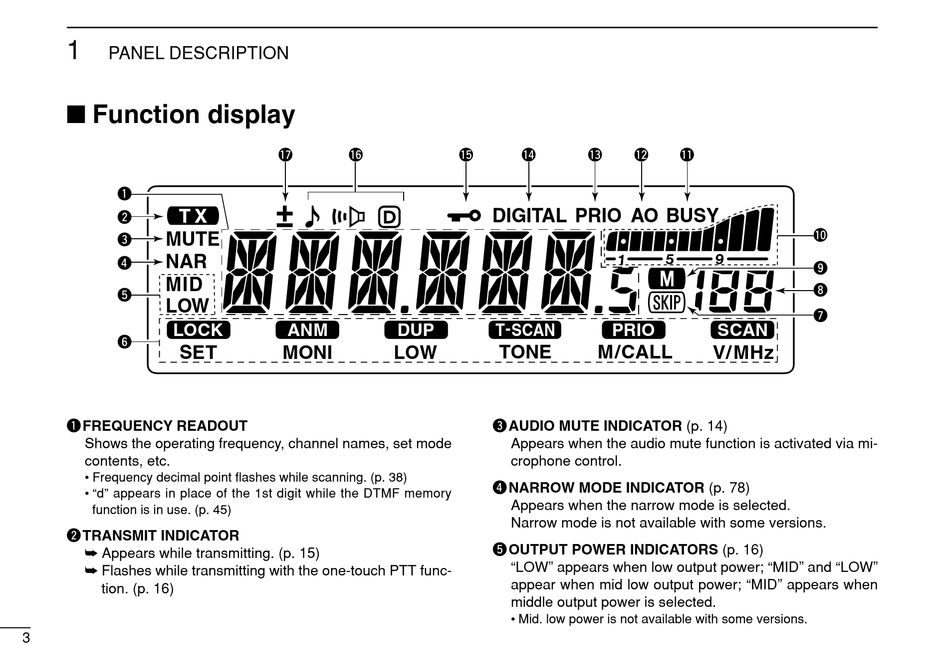

q FREQUENCY READOUT
Shows the operating frequency, channel names, set mode
contents, etc.
• Frequency decimal point flashes while scanning. (p. 38)
• "d" appears in place of the 1st digit while the DTMF memory
function is in use. (p. 45)
w TRANSMIT INDICATOR
➥ Appears while transmitting. (p. 15)
➥ Flashes while transmitting with the one-touch PTT func-
tion. (p. 16)
3
!7 !6
ANM DUP
MONI LOW
!5 !4 !3 !2
DIGITAL PRIO AO BUSY
T - SCAN
PRIO
TONE M/CALL
e AUDIO MUTE INDICATOR (p. 14)
Appears when the audio mute function is activated via mi-
crophone control.
r NARROW MODE INDICATOR (p. 78)
Appears when the narrow mode is selected.
Narrow mode is not available with some versions.
t OUTPUT POWER INDICATORS (p. 16)
"LOW" appears when low output power; "MID" and "LOW"
appear when mid low output power; "MID" appears when
middle output power is selected.
• Mid. low power is not available with some versions.
