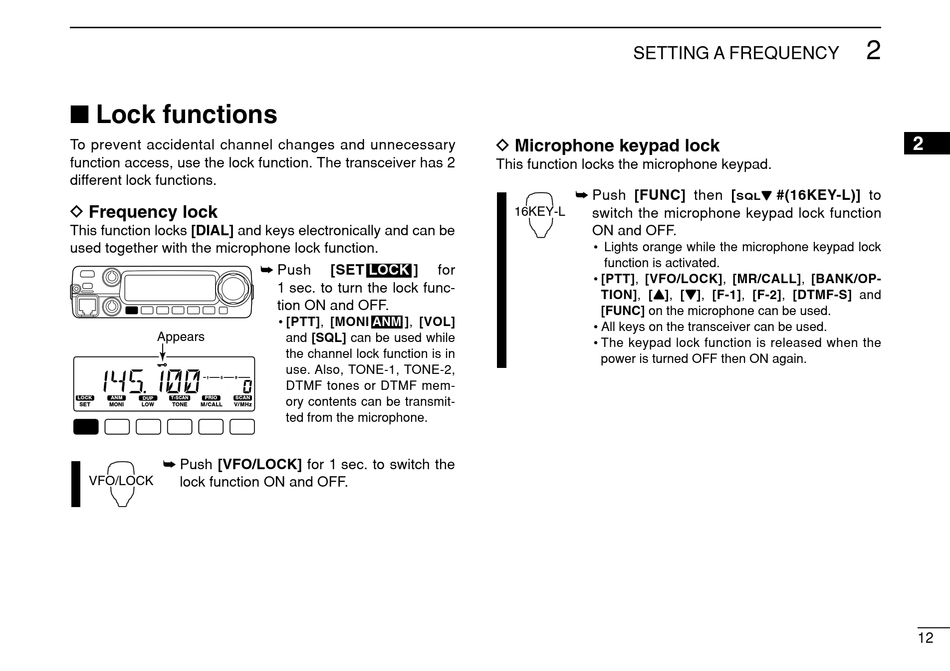

I Lock functions

To prevent accidental channel changes and unnecessary
function access, use the lock function. The transceiver has 2
different lock functions.
D Frequency lock
This function locks [DIAL] and keys electronically and can be
used together with the microphone lock function.
Appears
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
➥ Push [VFO/LOCK] for 1 sec. to switch the
VFO/LOCK lock function ON and OFF.
➥ Push
[SET LOCK ] for
1 sec. to turn the lock func-
tion ON and OFF.
• [PTT], [MONI ANM ], [VOL]
and [SQL] can be used while
the channel lock function is in
use. Also, TONE-1, TONE-2,
DTMF tones or DTMF mem-
ory contents can be transmit-
ted from the microphone.
SETTING A FREQUENCY
D Microphone keypad lock
This function locks the microphone keypad.
➥ Push [FUNC] then [
16KEY-L switch the microphone keypad lock function
ON and OFF.
• Lights orange while the microphone keypad lock
function is activated.
• [PTT], [VFO/LOCK], [MR/CALL], [BANK/OP-
TION], [Y Y ], [Z Z ], [F-1], [F-2], [DTMF-S] and
[FUNC] on the microphone can be used.
• All keys on the transceiver can be used.
• The keypad lock function is released when the
power is turned OFF then ON again.
2
2
Z Z #(16KEY-L)] to
SQL
12
