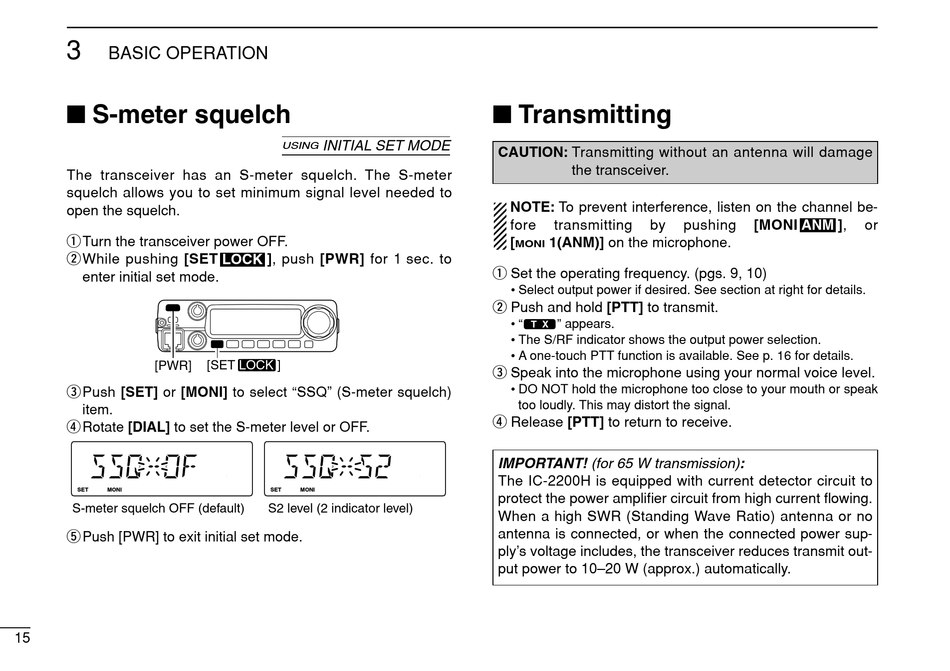

BASIC OPERATION

I S-meter squelch

The transceiver has an S-meter squelch. The S-meter
squelch allows you to set minimum signal level needed to
open the squelch.
q Turn the transceiver power OFF.
wWhile pushing [SET
enter initial set mode.
[PWR]
ePush [SET] or [MONI] to select "SSQ" (S-meter squelch)
item.
r Rotate [DIAL] to set the S-meter level or OFF.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
S-meter squelch OFF (default)
t Push [PWR] to exit initial set mode.
15
INITIAL SET MODE
USING
LOCK ], push [PWR] for 1 sec. to
[SET LOCK ]
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
PRIO SCAN LOCK ANM DUP T-SCAN
M/CALL V/ MHz S ET MONI LOW TONE
S2 level (2 indicator level)

I Transmitting

CAUTION: Transmitting without an antenna will damage
NOTE: To prevent interference, listen on the channel be-
fore transmitting
[ 1(ANM)] on the microphone.
MONI
q Set the operating frequency. (pgs. 9, 10)
• Select output power if desired. See section at right for details.
w Push and hold [PTT] to transmit.
• "$" appears.
• The S/RF indicator shows the output power selection.
• A one-touch PTT function is available. See p. 16 for details.
e Speak into the microphone using your normal voice level.
• DO NOT hold the microphone too close to your mouth or speak
too loudly. This may distort the signal.
r Release [PTT] to return to receive.
IMPORTANT! (for 65 W transmission):
The IC-2200H is equipped with current detector circuit to
PRIO SCAN
M/CALL V/ MHz
protect the power amplifier circuit from high current flowing.
When a high SWR (Standing Wave Ratio) antenna or no
antenna is connected, or when the connected power sup-
ply's voltage includes, the transceiver reduces transmit out-
put power to 10–20 W (approx.) automatically.
the transceiver.
by pushing [MONI ANM ], or
