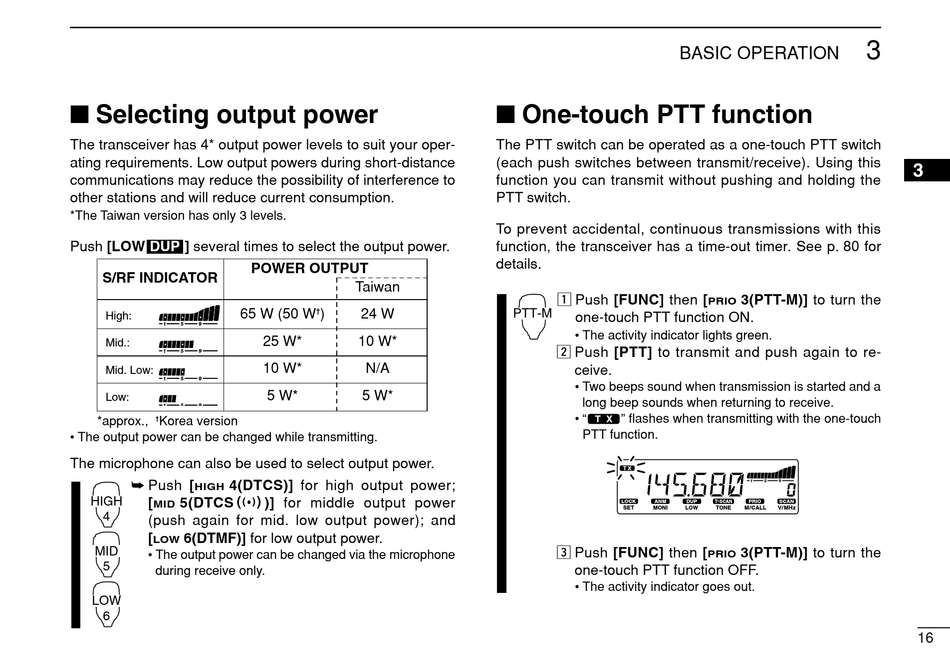

I Selecting output power

The transceiver has 4* output power levels to suit your oper-
ating requirements. Low output powers during short-distance
communications may reduce the possibility of interference to
other stations and will reduce current consumption.
*The Taiwan version has only 3 levels.
Push [LOW DUP ] several times to select the output power.
S/RF INDICATOR
65 W (50 W
High:
Mid.:
Mid. Low:
Low:
*approx., † Korea version
• The output power can be changed while transmitting.
The microphone can also be used to select output power.
➥ Push [
4(DTCS)] for high output power;
HIGH
HIGH S )] for middle output power
[ 5(DTCSS
MID
4
(push again for mid. low output power); and
[ 6(DTMF)] for low output power.
LOW
MID
• The output power can be changed via the microphone
5
during receive only.
LOW
6
POWER OUTPUT
Taiwan
) 24 W
†
25 W* 10 W*
10 W* N/A
5 W* 5 W*

I One-touch PTT function

The PTT switch can be operated as a one-touch PTT switch
(each push switches between transmit/receive). Using this
function you can transmit without pushing and holding the
PTT switch.
To prevent accidental, continuous transmissions with this
function, the transceiver has a time-out timer. See p. 80 for
details.
z Push [FUNC] then [
PTT-M
one-touch PTT function ON.
• The activity indicator lights green.
x Push [PTT] to transmit and push again to re-
ceive.
• Two beeps sound when transmission is started and a
long beep sounds when returning to receive.
• "$" flashes when transmitting with the one-touch
PTT function.
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
c Push [FUNC] then [
one-touch PTT function OFF.
• The activity indicator goes out.
BASIC OPERATION
3(PTT-M)] to turn the
PRIO
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/ MHz
3(PTT-M)] to turn the
PRIO
3
3
16
