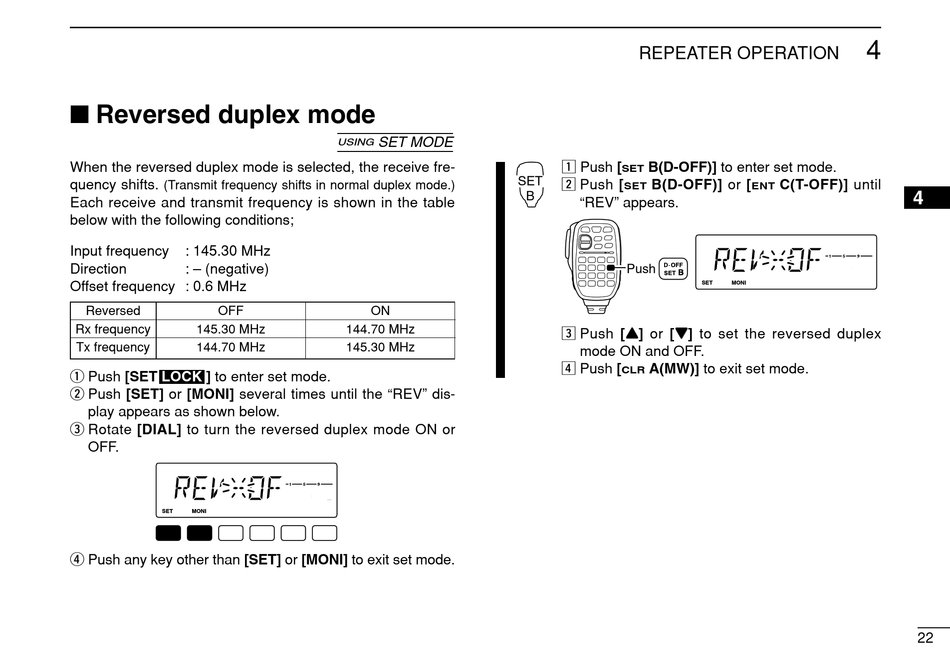

I Reversed duplex mode

When the reversed duplex mode is selected, the receive fre-
quency shifts.
(Transmit frequency shifts in normal duplex mode.)
Each receive and transmit frequency is shown in the table
below with the following conditions;
Input frequency : 145.30 MHz
Direction : – (negative)
Offset frequency : 0.6 MHz
Reversed OFF
Rx frequency 145.30 MHz
Tx frequency 144.70 MHz
q Push [SET
LOCK ] to enter set mode.
w Push [SET] or [MONI] several times until the "REV" dis-
play appears as shown below.
e Rotate [DIAL] to turn the reversed duplex mode ON or
OFF.
MUTE
NAR
MID
LOW
LOCK ANM DUP
S ET MONI LOW
r Push any key other than [SET] or [MONI] to exit set mode.
SET MODE
USING
ON
144.70 MHz
145.30 MHz
DIGITAL PRIO AO BUSY
T-SCAN PRIO SCAN
TONE M/CALL V/ MHz
REPEATER OPERATION
z Push [
B(D-OFF)] to enter set mode.
SET
SET
x Push [
B(D-OFF)] or [
SET
B
"REV" appears.
Push
c Push [Y Y ] or [Z Z ] to set the reversed duplex
mode ON and OFF.
v Push [
A(MW)] to exit set mode.
CLR
4
C(T-OFF)] until
ENT
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
4
