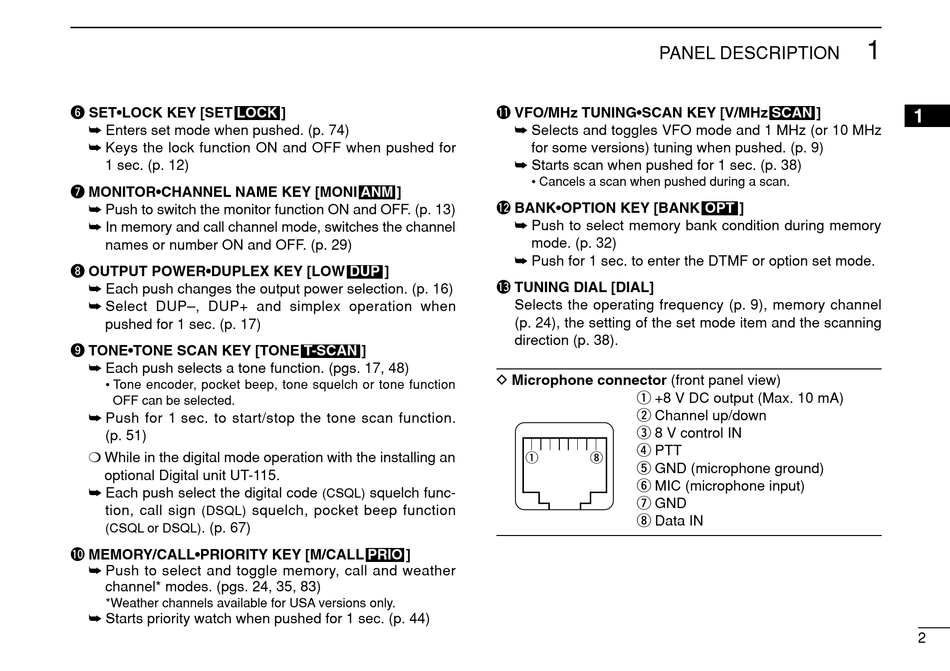

y SET•LOCK KEY [SET
LOCK
➥ Enters set mode when pushed. (p. 74)
➥ Keys the lock function ON and OFF when pushed for
1 sec. (p. 12)
u MONITOR•CHANNEL NAME KEY [MONI
➥ Push to switch the monitor function ON and OFF. (p. 13)
➥ In memory and call channel mode, switches the channel
names or number ON and OFF. (p. 29)
i OUTPUT POWER•DUPLEX KEY [LOW
➥ Each push changes the output power selection. (p. 16)
➥ Select DUP–, DUP+ and simplex operation when
pushed for 1 sec. (p. 17)
o TONE•TONE SCAN KEY [TONE
➥ Each push selects a tone function. (pgs. 17, 48)
• Tone encoder, pocket beep, tone squelch or tone function
OFF can be selected.
➥ Push for 1 sec. to start/stop the tone scan function.
(p. 51)
❍ While in the digital mode operation with the installing an
optional Digital unit UT-115.
➥ Each push select the digital code
tion, call sign
(DSQL)
. (p. 67)
(CSQL or DSQL)
!0 MEMORY/CALL•PRIORITY KEY [M/CALL
➥ Push to select and toggle memory, call and weather
channel* modes. (pgs. 24, 35, 83)
*Weather channels available for USA versions only.
➥ Starts priority watch when pushed for 1 sec. (p. 44)
]
ANM ]
DUP ]
T-SCAN ]
squelch func-
(CSQL)
squelch, pocket beep function
PRIO ]
PANEL DESCRIPTION
!1 VFO/MHz TUNING•SCAN KEY [V/MHz
➥ Selects and toggles VFO mode and 1 MHz (or 10 MHz
for some versions) tuning when pushed. (p. 9)
➥ Starts scan when pushed for 1 sec. (p. 38)
• Cancels a scan when pushed during a scan.
!2 BANK•OPTION KEY [BANK
➥ Push to select memory bank condition during memory
mode. (p. 32)
➥ Push for 1 sec. to enter the DTMF or option set mode.
!3 TUNING DIAL [DIAL]
Selects the operating frequency (p. 9), memory channel
(p. 24), the setting of the set mode item and the scanning
direction (p. 38).
D Microphone connector (front panel view)
q +8 V DC output (Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
q i
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
1
SCAN ]
OPT ]
1
2
