15
MAINTENANCE

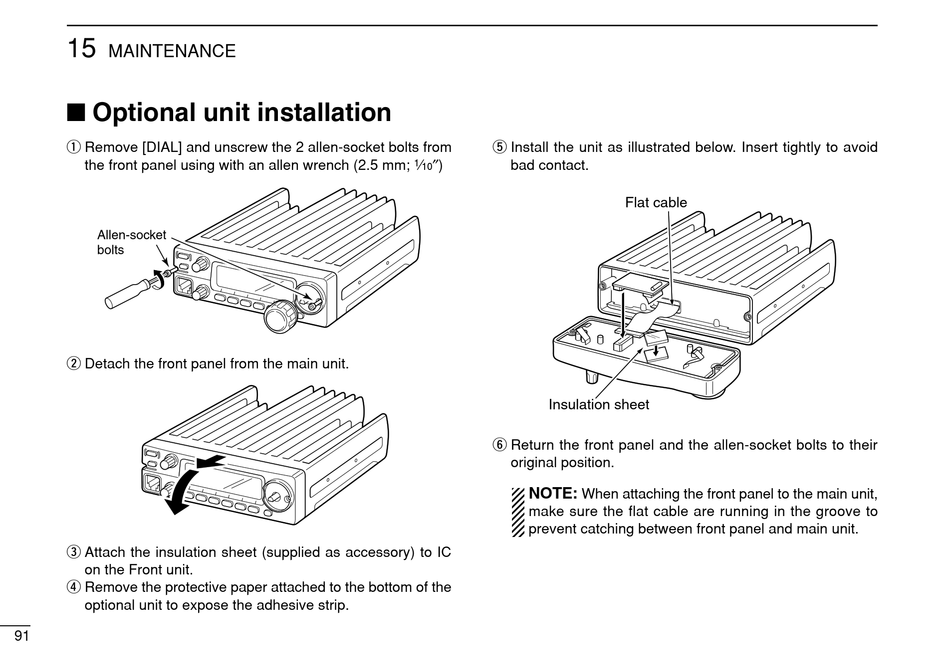

I Optional unit installation

q Remove [DIAL] and unscrew the 2 allen-socket bolts from
the front panel using with an allen wrench (2.5 mm;
Allen-socket
bolts
w Detach the front panel from the main unit.
e Attach the insulation sheet (supplied as accessory) to IC
on the Front unit.
r Remove the protective paper attached to the bottom of the
optional unit to expose the adhesive strip.
91
t Install the unit as illustrated below. Insert tightly to avoid
")
1 ⁄ bad contact.
10
Insulation sheet
y Return the front panel and the allen-socket bolts to their
original position.
NOTE:
When attaching the front panel to the main unit,
make sure the flat cable are running in the groove to
prevent catching between front panel and main unit.
Flat cable
