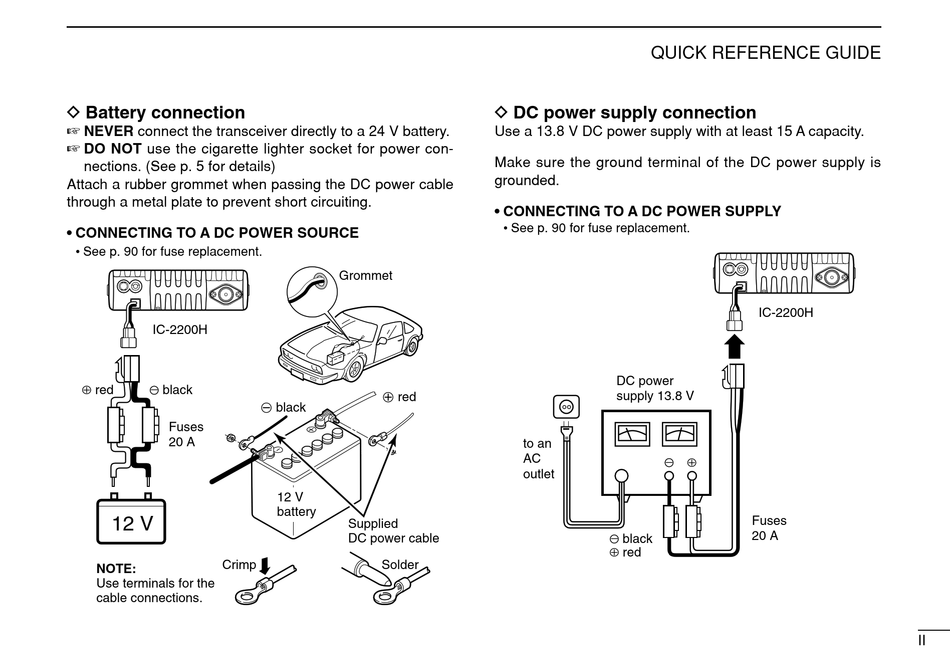

D Battery connection
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections. (See p. 5 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent short circuiting.
• CONNECTING TO A DC POWER SOURCE
• See p. 90 for fuse replacement.
IC-2200H
−
⊕
red
black
Fuses
20 A
12 V
Crimp
NOTE:
Use terminals for the
cable connections.
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Solder
QUICK REFERENCE GUIDE
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
• See p. 90 for fuse replacement.
DC power
supply 13.8 V
to an
AC −
outlet
−
black
⊕
red
IC-2200H
⊕
Fuses
20 A
II
