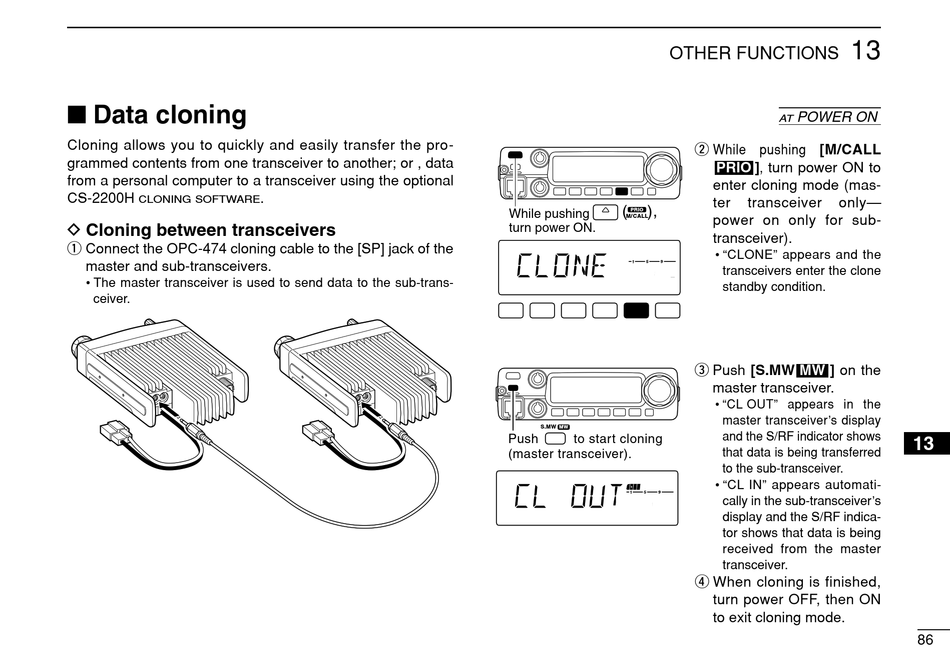

I Data cloning

Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or , data
from a personal computer to a transceiver using the optional
CS-2200H
CLONING SOFTWARE
D Cloning between transceivers
q Connect the OPC-474 cloning cable to the [SP] jack of the
master and sub-transceivers.
• The master transceiver is used to send data to the sub-trans-
ceiver.
.
OTHER FUNCTIONS
( ),
PRIO
While pushing
M/ CALL
turn power ON.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET
MONI LOW TONE M/CALL V/ MHz
S.MW
MW
Push to start cloning
(master transceiver).
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
13
POWER ON
AT
w While pushing [M/CALL
PRIO ], turn power ON to
enter cloning mode (mas-
ter transceiver only—
power on only for sub-
transceiver).
• "CLONE" appears and the
transceivers enter the clone
standby condition.
e Push [S.MW
MW ] on the
master transceiver.
• "CL OUT" appears in the
master transceiver's display
and the S/RF indicator shows
that data is being transferred
to the sub-transceiver.
• "CL IN" appears automati-
cally in the sub-transceiver's
display and the S/RF indica-
tor shows that data is being
received from the master
transceiver.
r When cloning is finished,
turn power OFF, then ON
to exit cloning mode.
13
86
