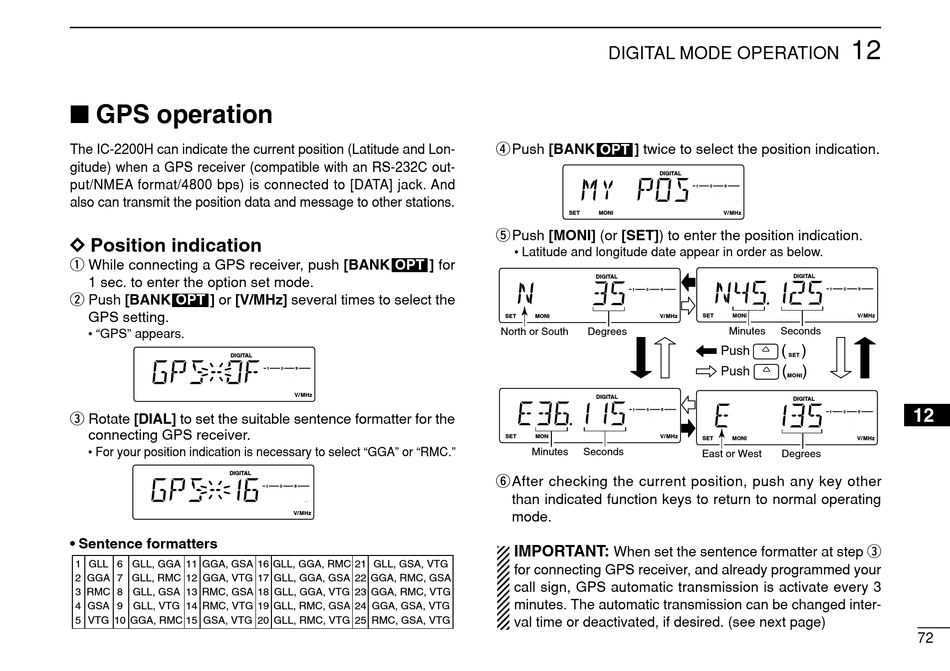

I GPS operation

The IC-2200H can indicate the current position (Latitude and Lon-
gitude) when a GPS receiver (compatible with an RS-232C out-
put/NMEA format/4800 bps) is connected to [DATA] jack. And
also can transmit the position data and message to other stations.
D D Position indication
q While connecting a GPS receiver, push [BANK
1 sec. to enter the option set mode.
w Push [BANK
OPT ] or [V/MHz] several times to select the
GPS setting.
• "GPS" appears.
DIGITAL
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
e Rotate [DIAL] to set the suitable sentence formatter for the
connecting GPS receiver.
• For your position indication is necessary to select "GGA" or "RMC."
DIGITAL
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
• Sentence formatters
GLL 6 GLL, GGA 11 GGA, GSA
1
2 GGA 7 GLL, RMC 12 GGA, VTG
3 RMC 8 GLL, GSA 13 RMC, GSA
4 GSA 9 GLL, VTG 14 RMC, VTG
5 VTG 10 GGA, RMC 15 GSA, VTG
OPT ] for
PRIO AO BUSY
PRIO SCAN
M/CALL V/ MHz
PRIO AO BUSY
PRIO SCAN
M/CALL V/ MHz
16 GLL, GGA, RMC 21 GLL, GSA, VTG
17 GLL, GGA, GSA 22 GGA, RMC, GSA
18 GLL, GGA, VTG 23 GGA, RMC, VTG
19 GLL, RMC, GSA 24 GGA, GSA, VTG
20 GLL, RMC, VTG 25 RMC, GSA, VTG
DIGITAL MODE OPERATION
rPush [BANK
OPT ] twice to select the position indication.
DIGITAL
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
t Push [MONI] (or [SET]) to enter the position indication.
• Latitude and longitude date appear in order as below.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
North or South Degrees
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
Minutes Seconds
yAfter checking the current position, push any key other
than indicated function keys to return to normal operating
mode.
When set the sentence formatter at step e
IMPORTANT:
for connecting GPS receiver, and already programmed your
call sign, GPS automatic transmission is activate every 3
minutes. The automatic transmission can be changed inter-
val time or deactivated, if desired. (see next page)
12
PRIO AO BUSY
PRIO SCAN
M/CALL V/ MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
Minutes Seconds
( )
Push
LOCK
SET
( )
Push
MONI
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
East or West Degrees
