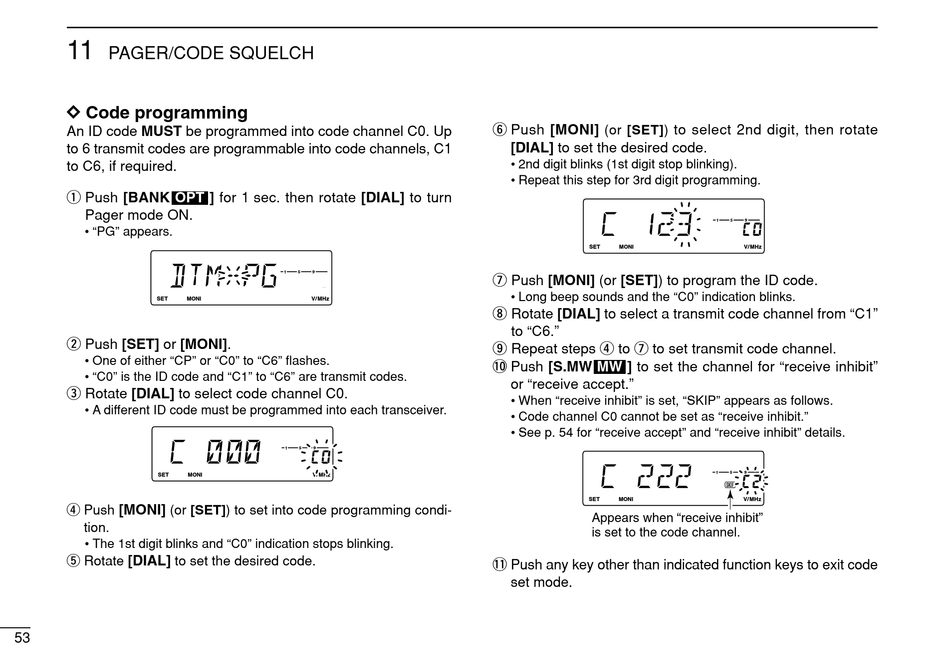

Icom IC-2200H Instruction Manual page 66

11
PAGER/CODE SQUELCH
D D Code programming
An ID code MUST be programmed into code channel C0. Up
to 6 transmit codes are programmable into code channels, C1
to C6, if required.
q Push [BANK
OPT
Pager mode ON.
• "PG" appears.
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
w Push [SET] or [MONI].
• One of either "CP" or "C0" to "C6" flashes.
• "C0" is the ID code and "C1" to "C6" are transmit codes.
e Rotate [DIAL] to select code channel C0.
• A different ID code must be programmed into each transceiver.
MUTE
NAR
MID
LOW
LOCK ANM
S ET
MONI
r Push
[MONI]
(or [SET]) to set into code programming condi-
tion.
• The 1st digit blinks and "C0" indication stops blinking.
t Rotate
[DIAL]
to set the desired code.
53
] for 1 sec. then rotate [DIAL] to turn
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/ MHz
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/ MHz
y Push [MONI]
(or [SET])
[DIAL] to set the desired code.
• 2nd digit blinks (1st digit stop blinking).
• Repeat this step for 3rd digit programming.
MUTE
NAR
MID
LOW
LOCK ANM DUP
S ET MONI LOW
u Push [MONI] (or [SET]) to program the ID code.
• Long beep sounds and the "C0" indication blinks.
i Rotate [DIAL] to select a transmit code channel from "C1"
to "C6."
o Repeat steps r to u to set transmit code channel.
!0 Push [S.MW
MW ] to set the channel for "receive inhibit"
or "receive accept."
• When "receive inhibit" is set, "SKIP" appears as follows.
• Code channel C0 cannot be set as "receive inhibit."
• See p. 54 for "receive accept" and "receive inhibit" details.
MUTE
NAR
MID
LOW
LOCK ANM DUP
S ET MONI LOW
Appears when "receive inhibit"
is set to the code channel.
!1 Push any key other than indicated function keys to exit code
set mode.
to select 2nd digit, then rotate
DIGITAL PRIO AO BUSY
T-SCAN PRIO SCAN
TONE M/CALL V/ MHz
DIGITAL PRIO AO BUSY
T-SCAN PRIO SCAN
TONE M/CALL V/ MHz
