Repeater Operation; I Accessing A Repeater - Icom IC-2200H Instruction Manual

4

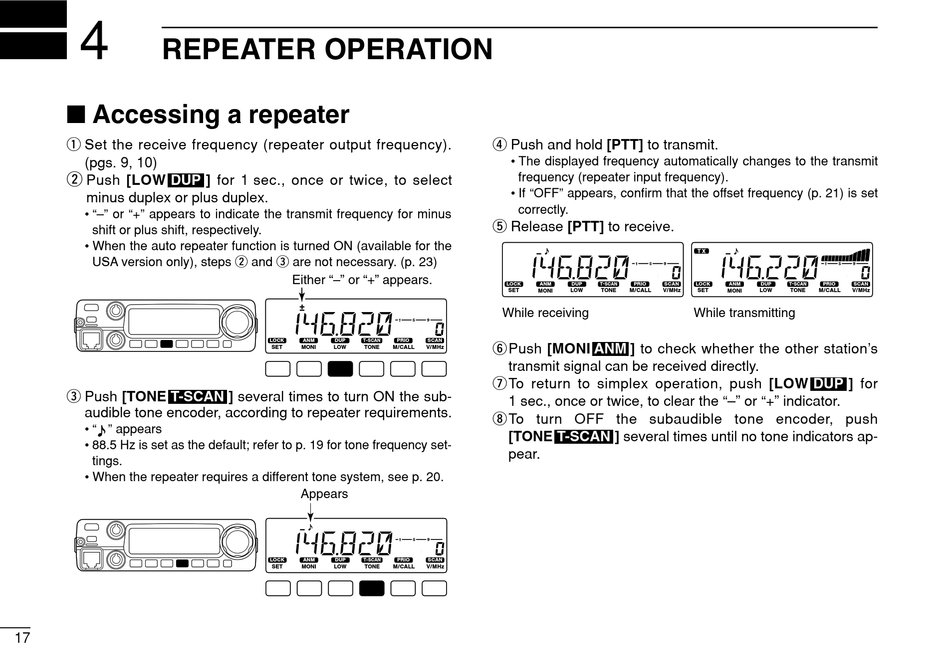

REPEATER OPERATION

I Accessing a repeater

q Set the receive frequency (repeater output frequency).
(pgs. 9, 10)
w
Push [LOW DUP
minus duplex or plus duplex.
• "–" or "+" appears to indicate the transmit frequency for minus
shift or plus shift, respectively.
• When the auto repeater function is turned ON (available for the
USA version only), steps w and e are not necessary. (p. 23)
e Push [TONE
T-SCAN
audible tone encoder, according to repeater requirements.
• " " appears
• 88.5 Hz is set as the default; refer to p. 19 for tone frequency set-
tings.
• When the repeater requires a different tone system, see p. 20.
17
] for 1 sec., once or twice, to select
Either "–" or "+" appears.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
] several times to turn ON the sub-
Appears
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
r Push and hold [PTT] to transmit.
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
• If "OFF" appears, confirm that the offset frequency (p. 21) is set
correctly.
t Release [PTT] to receive.
MUTE
NAR
MID
LOW
LOCK ANM DUP
S ET MONI LOW
While receiving
PRIO SCAN
yPush [MONI
M/CALL V/ MHz
transmit signal can be received directly.
uTo return to simplex operation, push [LOW
1 sec., once or twice, to clear the "–" or "+" indicator.
iTo turn OFF the subaudible tone encoder, push
[TONE T-SCAN
pear.
PRIO SCAN
M/CALL V/ MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
T-SCAN PRIO SCAN LOCK ANM DUP
TONE M/CALL V/ MHz S ET MONI LOW
While transmitting
ANM ] to check whether the other station's
] several times until no tone indicators ap-
DIGITAL PRIO AO BUSY
T-SCAN PRIO SCAN
TONE M/CALL V/ MHz
DUP ] for
