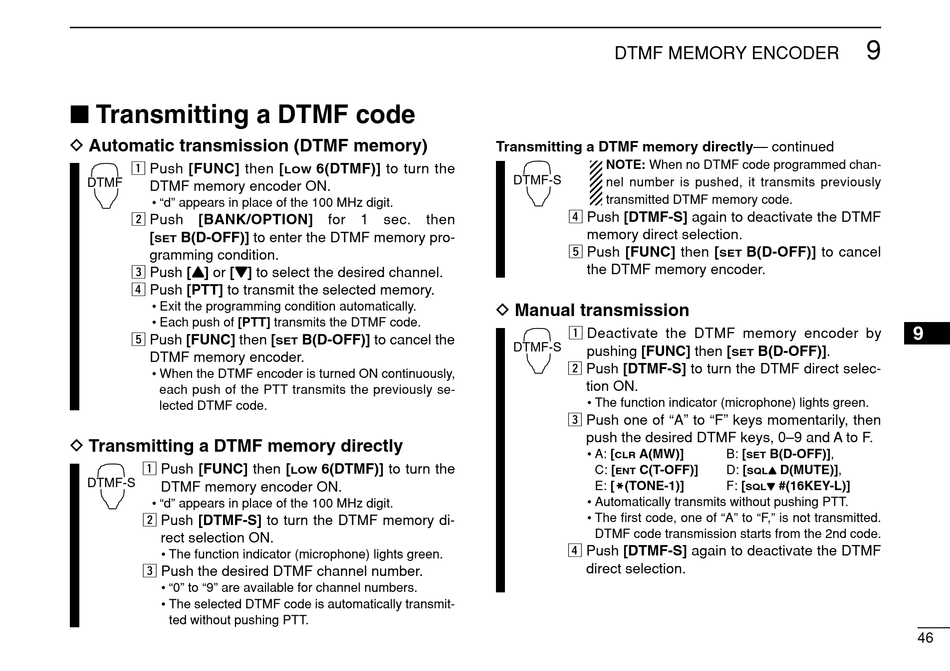

I Transmitting a DTMF code

D Automatic transmission (DTMF memory)
z Push [FUNC] then [
DTMF
DTMF memory encoder ON.
• "d" appears in place of the 100 MHz digit.
x Push [BANK/OPTION] for 1 sec. then
[ B(D-OFF)] to enter the DTMF memory pro-
SET
gramming condition.
c Push [Y Y ] or [Z Z ] to select the desired channel.
v Push [PTT] to transmit the selected memory.
• Exit the programming condition automatically.
• Each push of [PTT] transmits the DTMF code.
b Push [FUNC] then [
DTMF memory encoder.
• When the DTMF encoder is turned ON continuously,
each push of the PTT transmits the previously se-
lected DTMF code.
D Transmitting a DTMF memory directly
z Push [FUNC] then [
DTMF-S
DTMF memory encoder ON.
• "d" appears in place of the 100 MHz digit.
x Push [DTMF-S] to turn the DTMF memory di-
rect selection ON.
• The function indicator (microphone) lights green.
c Push the desired DTMF channel number.
• "0" to "9" are available for channel numbers.
• The selected DTMF code is automatically transmit-
ted without pushing PTT.
6(DTMF)] to turn the
LOW
B(D-OFF)] to cancel the
SET
6(DTMF)] to turn the
LOW
DTMF MEMORY ENCODER
Transmitting a DTMF memory directly— continued
NOTE: When no DTMF code programmed chan-
DTMF-S
nel number is pushed, it transmits previously
transmitted DTMF memory code.
v Push [DTMF-S] again to deactivate the DTMF
memory direct selection.
b Push [FUNC] then [
the DTMF memory encoder.
D Manual transmission
z Deactivate the DTMF memory encoder by
DTMF-S
pushing [FUNC] then [
x Push [DTMF-S] to turn the DTMF direct selec-
tion ON.
• The function indicator (microphone) lights green.
c Push one of "A" to "F" keys momentarily, then
push the desired DTMF keys, 0–9 and A to F.
• A: [ A(MW)]
CLR
C: [ C(T-OFF)]
ENT
E: [M M (TONE-1)]
• Automatically transmits without pushing PTT.
• The first code, one of "A" to "F," is not transmitted.
DTMF code transmission starts from the 2nd code.
v Push [DTMF-S] again to deactivate the DTMF
direct selection.
9
B(D-OFF)] to cancel
SET
B(D-OFF)].
SET
B: [ B(D-OFF)],
SET
D: [ D(MUTE)],
Y Y
SQL
F: [ #(16KEY-L)]
Z Z
SQL
9
