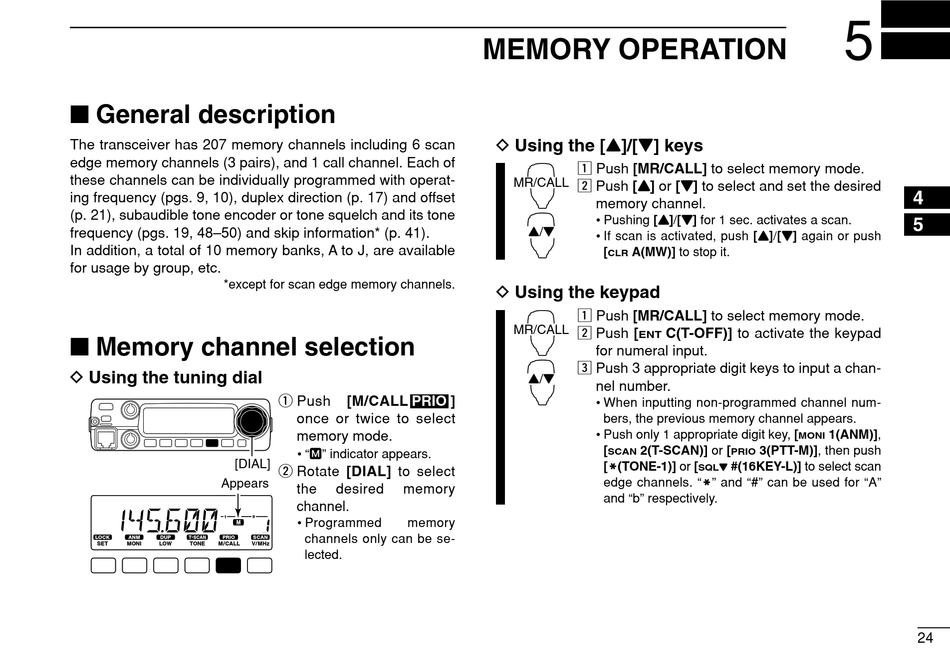

I General description

The transceiver has 207 memory channels including 6 scan
edge memory channels (3 pairs), and 1 call channel. Each of
these channels can be individually programmed with operat-
ing frequency (pgs. 9, 10), duplex direction (p. 17) and offset
(p. 21), subaudible tone encoder or tone squelch and its tone
frequency (pgs. 19, 48–50) and skip information* (p. 41).
In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.
*except for scan edge memory channels.

I Memory channel selection

D Using the tuning dial
[DIAL]
Appears
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
q Push
[M/CALL PRIO
once or twice to select
memory mode.
• "M" indicator appears.
w Rotate [DIAL] to select
the desired memory
channel.
• Programmed memory
channels only can be se-
SCAN
V/ MHz
lected.

MEMORY OPERATION

D Using the [Y]/[Z] keys
z Push [MR/CALL] to select memory mode.
MR/CALL
x Push [Y Y ] or [Z Z ] to select and set the desired
memory channel.
• Pushing [Y Y ]/[Z Z ] for 1 sec. activates a scan.
Y/Z
• If scan is activated, push [Y Y ]/[Z Z ] again or push
[
CLR
D Using the keypad
z Push [MR/CALL] to select memory mode.
MR/CALL
x Push [
for numeral input.
c Push 3 appropriate digit keys to input a chan-
Y/Z
nel number.
]
• When inputting non-programmed channel num-
bers, the previous memory channel appears.
• Push only 1 appropriate digit key, [
[
SCAN
[M M (TONE-1)] or [
edge channels. "M M " and "#" can be used for "A"
and "b" respectively.
A(MW)] to stop it.
C(T-OFF)] to activate the keypad
ENT
MONI
2(T-SCAN)] or [ 3(PTT-M)], then push
PRIO
#(16KEY-L)] to select scan
Z Z
SQL
5
4
5
1(ANM)],
24
