9
DTMF MEMORY ENCODER

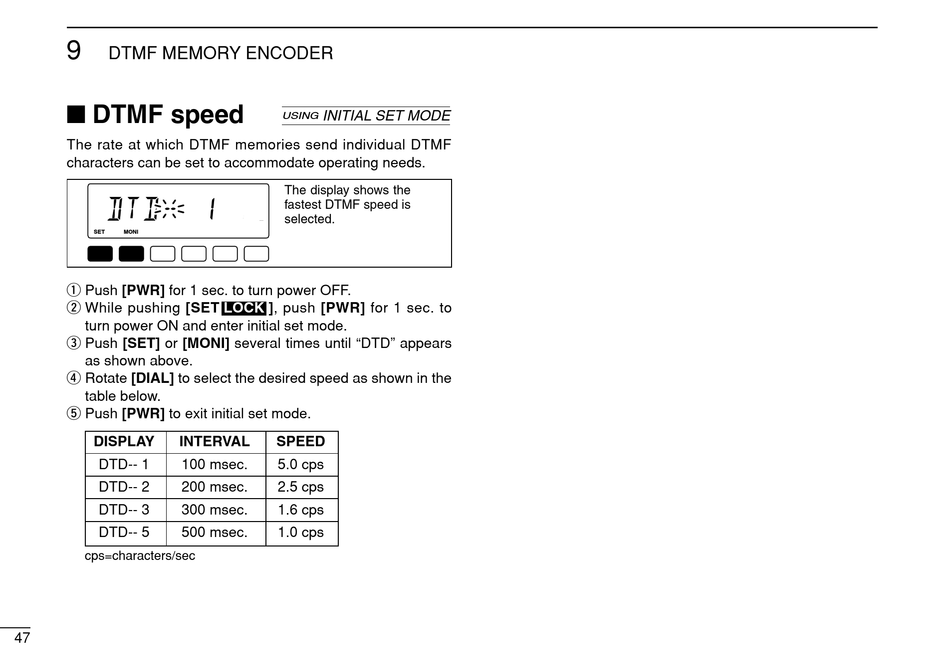

I DTMF speed

The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
q Push [PWR] for 1 sec. to turn power OFF.
w While pushing [SET
turn power ON and enter initial set mode.
e Push [SET] or [MONI] several times until "DTD" appears
as shown above.
r Rotate [DIAL] to select the desired speed as shown in the
table below.
t Push [PWR] to exit initial set mode.
DISPLAY INTERVAL
DTD-- 1 100 msec.
DTD-- 2 200 msec.
DTD-- 3 300 msec.
DTD-- 5 500 msec.
cps=characters/sec
47
INITIAL SET MODE
USING
The display shows the
fastest DTMF speed is
selected.
PRIO SCAN
M/CALL V/ MHz
LOCK ], push [PWR] for 1 sec. to
SPEED
5.0 cps
2.5 cps
1.6 cps
1.0 cps
