Required Optional UT-115

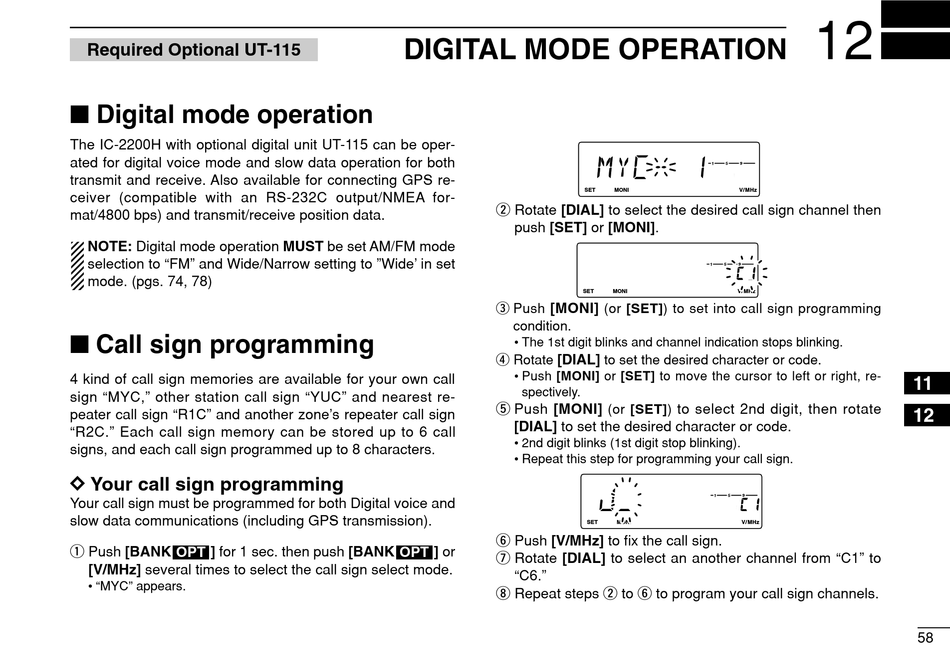

I Digital mode operation

The IC-2200H with optional digital unit UT-115 can be oper-
ated for digital voice mode and slow data operation for both
transmit and receive. Also available for connecting GPS re-
ceiver (compatible with an RS-232C output/NMEA for-
mat/4800 bps) and transmit/receive position data.
NOTE: Digital mode operation MUST be set AM/FM mode
selection to "FM" and Wide/Narrow setting to "Wide' in set
mode. (pgs. 74, 78)

I Call sign programming

4 kind of call sign memories are available for your own call
sign "MYC," other station call sign "YUC" and nearest re-
peater call sign "R1C" and another zone's repeater call sign
"R2C." Each call sign memory can be stored up to 6 call
signs, and each call sign programmed up to 8 characters.
D D Your call sign programming
Your call sign must be programmed for both Digital voice and
slow data communications (including GPS transmission).
q Push [BANK
OPT ] for 1 sec. then push [BANK
[V/MHz] several times to select the call sign select mode.
• "MYC" appears.
DIGITAL MODE OPERATION
w Rotate [DIAL] to select the desired call sign channel then
push [SET] or [MONI].
MUTE
NAR
MID
LOW
e Push
[MONI]
condition.
• The 1st digit blinks and channel indication stops blinking.
r Rotate
[DIAL]
• Push [MONI] or [SET] to move the cursor to left or right, re-
spectively.
t Push [MONI]
[DIAL] to set the desired character or code.
• 2nd digit blinks (1st digit stop blinking).
• Repeat this step for programming your call sign.
y Push [V/MHz] to fix the call sign.
OPT ] or
u Rotate [DIAL] to select an another channel from "C1" to
"C6."
i Repeat steps w to y to program your call sign channels.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
DIGITAL PRIO AO BUSY
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
(or [SET]) to set into call sign programming
to set the desired character or code.
to select 2nd digit, then rotate
(or [SET])
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/ MHz
12
11
12
58
