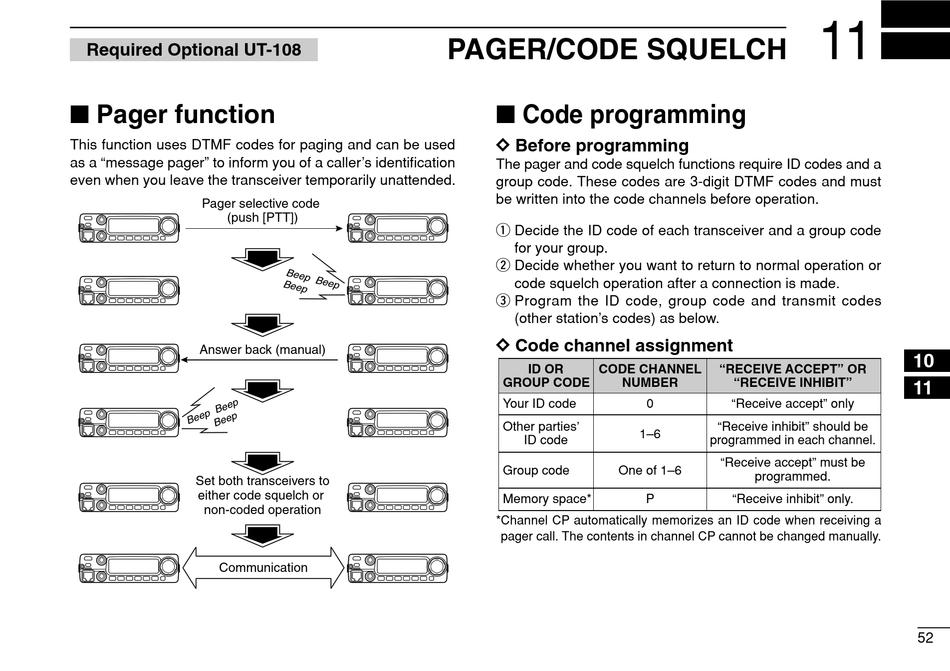

Pager/Code Squelch (Required Optional Ut-108); I Pager Function; I Code Programming - Icom IC-2200H Instruction Manual

Required Optional UT-108

I Pager function

This function uses DTMF codes for paging and can be used
as a "message pager" to inform you of a caller's identification
even when you leave the transceiver temporarily unattended.
Pager selective code
(push [PTT])
Answer back (manual)
Set both transceivers to
either code squelch or
non-coded operation
Communication
PAGER/CODE SQUELCH

I Code programming

D D Before programming
The pager and code squelch functions require ID codes and a
group code. These codes are 3-digit DTMF codes and must
be written into the code channels before operation.
q Decide the ID code of each transceiver and a group code
for your group.
w Decide whether you want to return to normal operation or
code squelch operation after a connection is made.
e Program the ID code, group code and transmit codes
(other station's codes) as below.
D D Code channel assignment
ID OR CODE CHANNEL
GROUP CODE NUMBER
Your ID code
Other parties'
ID code
Group code One of 1–6
Memory space*
*Channel CP automatically memorizes an ID code when receiving a
pager call. The contents in channel CP cannot be changed manually.
11
"RECEIVE ACCEPT" OR
"RECEIVE INHIBIT"
0 "Receive accept" only
"Receive inhibit" should be
1–6
programmed in each channel.
"Receive accept" must be
programmed.
P "Receive inhibit" only.
10
11
52
