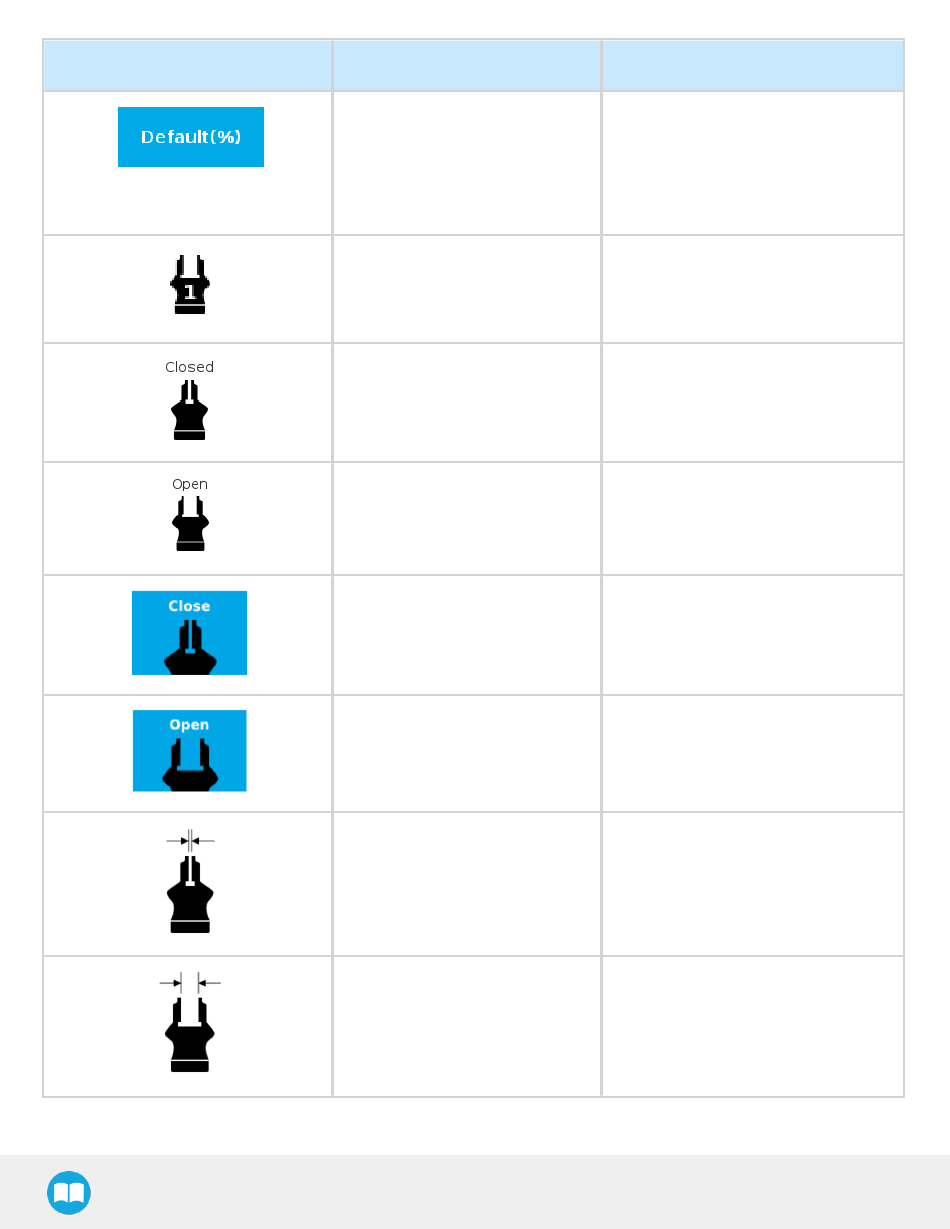

Robotiq Hand-E C10 Gripper Instruction Manual
Functionality Name
Default (%)
Gripper
Fully closed dimension table
header
Fully open dimension table header
Close
Open
Fully closed
Fully open
Description
Following a calibration, tap this button
to reset the calibration and return to the
default percentage values. The button
is greyed out if no calibration has been
performed for the corresponding
gripper.
Label indicating the gripper's ID ,
ranging from 1 to 4.
Visual aid above the fully closed
dimensions in the Calibration menu.
Visual aid above the fully open
dimensions in the Calibration menu
Tap this button to close the Gripper in
the Calibration wizard.
Tap this button to open the Gripper in
the Calibration wizard.
Visual aid for entering the fully closed
dimension in the Calibration wizard.
Visual aid for entering the fully open
dimension in the Calibration wizard.
