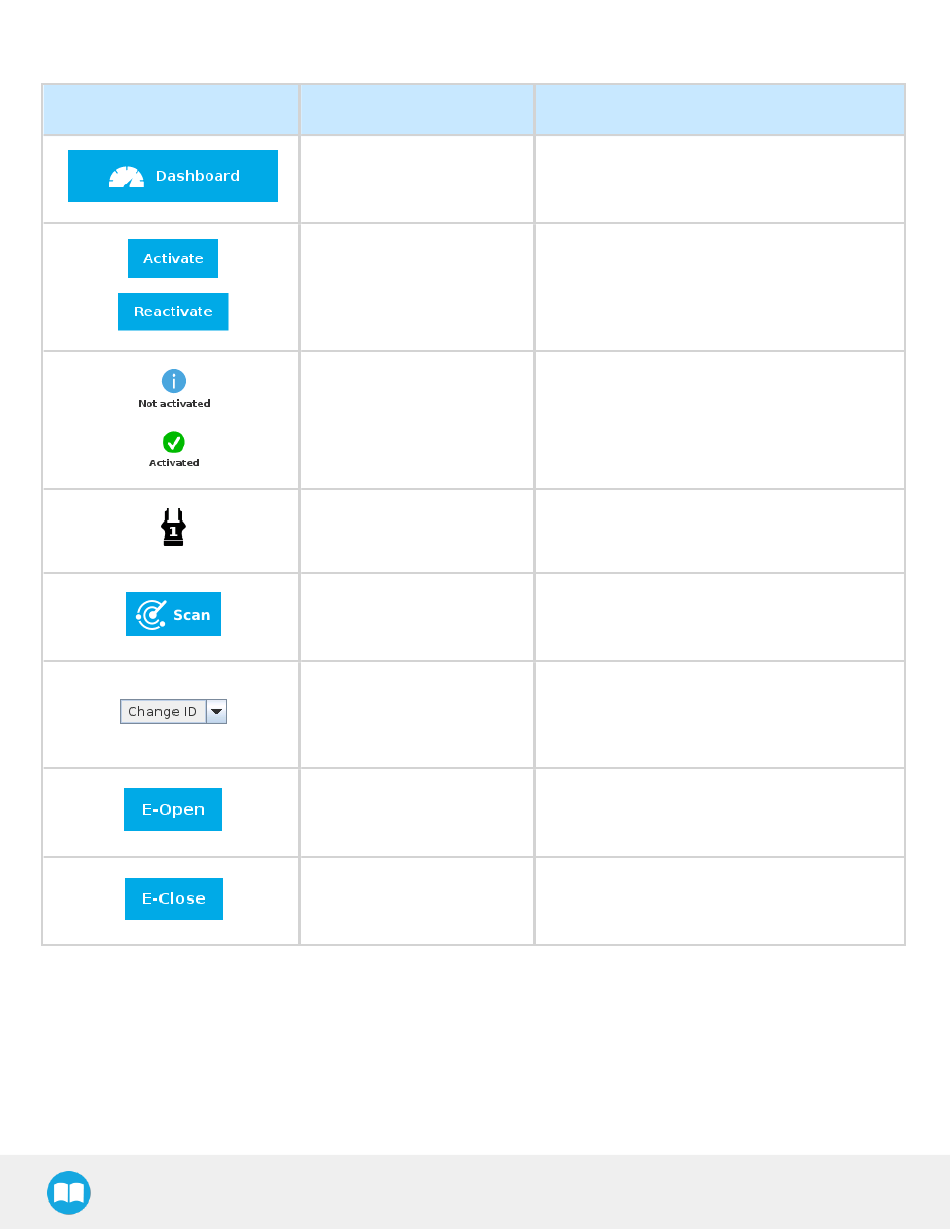

Features
Icon
Robotiq Hand-E C10 Gripper Instruction Manual
Functionality Name
Dashboard
Activate/Reactivate
Not activated/Activated
Gripper
Scan
Change ID
E-Open
E-Close
Description
After selecting Gripper in the left pane of the
Installation tab, tap this button to access the
Gripper Dashboard.
The Activate and Reactivate buttons enables the
corresponding gripper.
Gripper status: One or the other of these icons is
displayed next to the corresponding Gripper
icon.
Label indicating the gripper's ID, ranging from 1
to 4.
Command allowing for a detection of connected
grippers. After tapping this button, the latter will
display in the Gripper Dashboard.
Tap the arrow next to the text box to expand a list
of available gripper IDs. Selecting an available
number will allocate it to the corresponding
gripper.
Tapping this button sends an emergency open
command to the corresponding gripper, whether
it is activated or not.
Tapping this button sends an emergency close
command to the corresponding gripper, whether
it is activated or not.
