5. Specifications

INFO
This manual uses the metric system. Unless otherwise specified, all dimensions are in millimeters.

5.1. Technical dimensions

5.1.1. Hand-E C10 Gripper
The figure below represents the gripper dimensions with axes X, Y, Z, and origin referenced for finger motion.
INFO
All technical drawings in the current section depict stepped fingers.

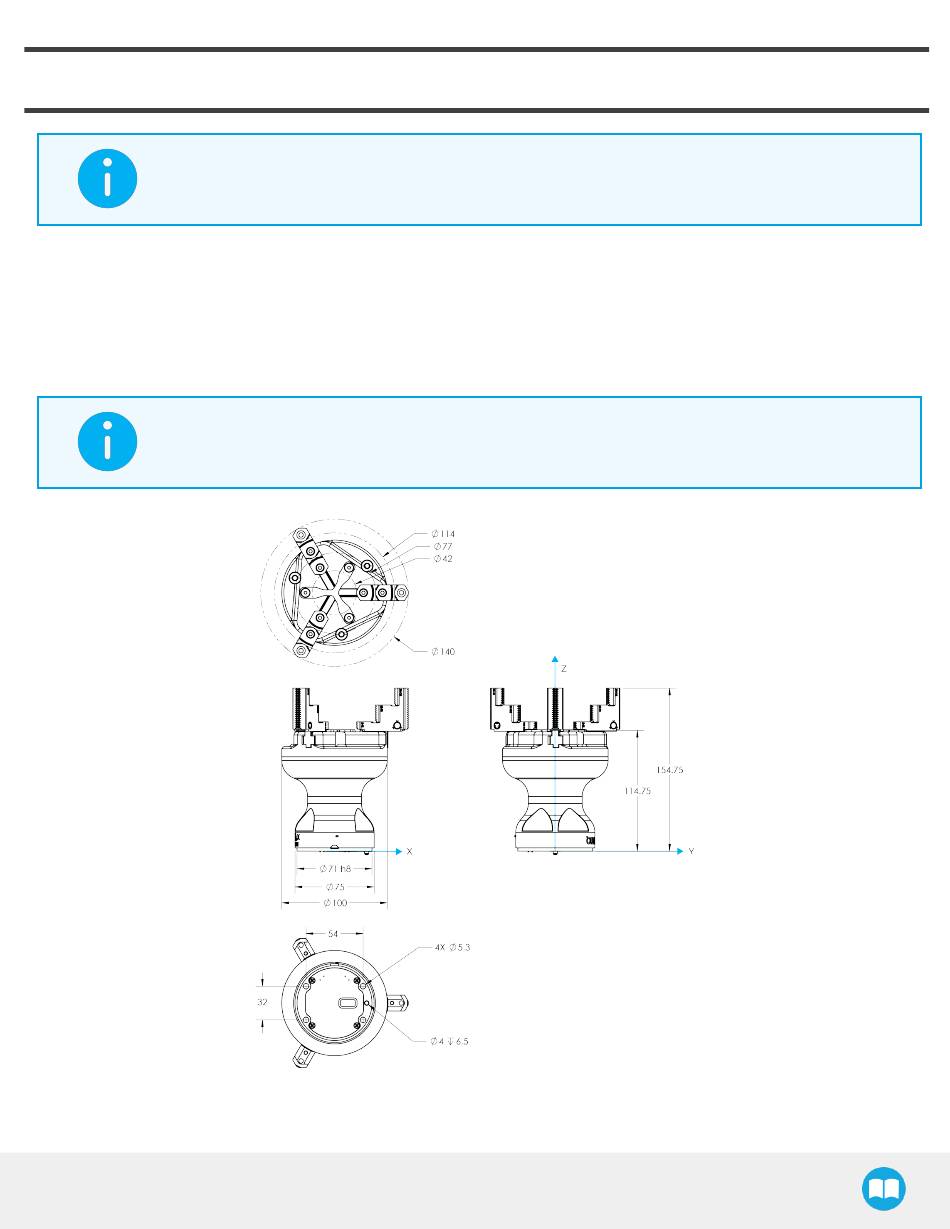

Fig. 5-1: General Dimensions of Hand-E C10 (open) with Flat Rubber (NPR) Stepped Fingers
