Protection degree
Casing
3�4�- DEVICE TERMINALS
11
9
Instruction Manual

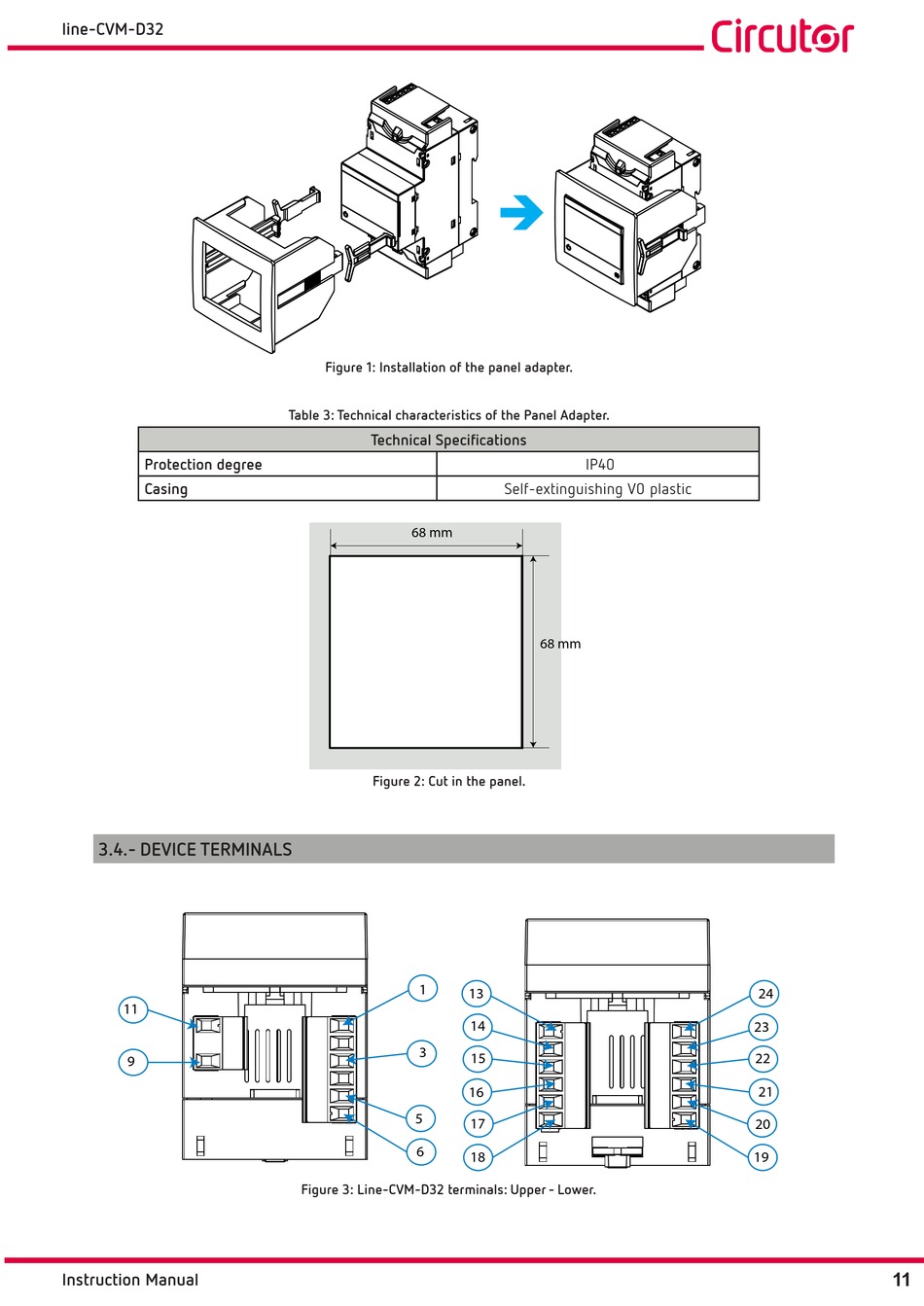

Figure 1: Installation of the panel adapter�
Table 3: Technical characteristics of the Panel Adapter�
Technical Specifications
68 mm
Figure 2: Cut in the panel�
1
3
5
6
Figure 3: Line-CVM-D32 terminals: Upper - Lower�
IP40
Self-extinguishing V0 plastic
68 mm
13
14
15
16
17
18
24
23
22
21
20
19
11
