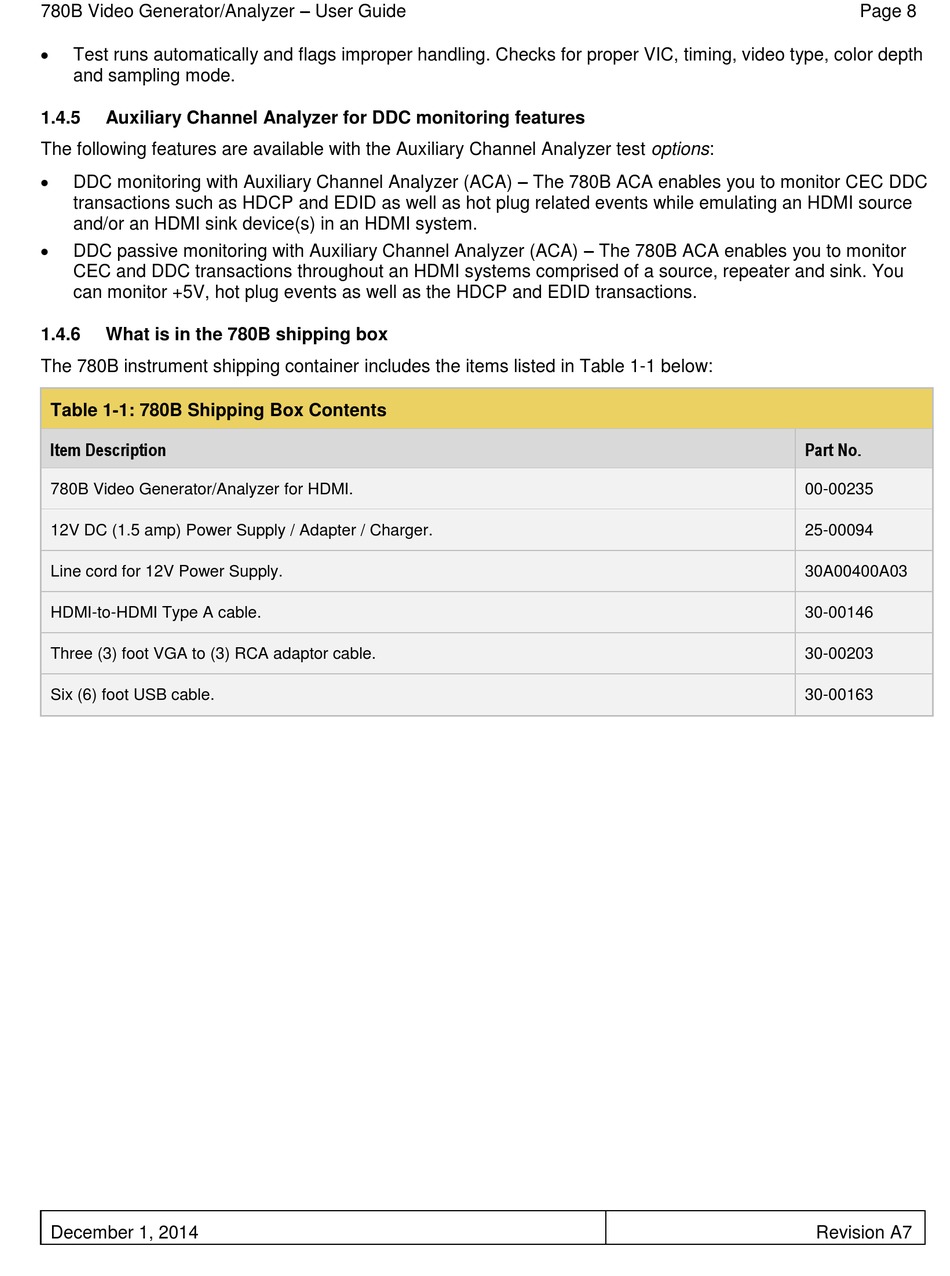

780B Video Generator/Analyzer – User Guide

Test runs automatically and flags improper handling. Checks for proper VIC, timing, video type, color depth
and sampling mode.
1.4.5

Auxiliary Channel Analyzer for DDC monitoring features

The following features are available with the Auxiliary Channel Analyzer test options:

DDC monitoring with Auxiliary Channel Analyzer (ACA) – The 780B ACA enables you to monitor CEC DDC
transactions such as HDCP and EDID as well as hot plug related events while emulating an HDMI source
and/or an HDMI sink device(s) in an HDMI system.

DDC passive monitoring with Auxiliary Channel Analyzer (ACA) – The 780B ACA enables you to monitor
CEC and DDC transactions throughout an HDMI systems comprised of a source, repeater and sink. You
can monitor +5V, hot plug events as well as the HDCP and EDID transactions.
1.4.6

What is in the 780B shipping box

The 780B instrument shipping container includes the items listed in Table 1-1 below:
Table 1-1: 780B Shipping Box Contents
Item Description
780B Video Generator/Analyzer for HDMI.
12V DC (1.5 amp) Power Supply / Adapter / Charger.
Line cord for 12V Power Supply.
HDMI-to-HDMI Type A cable.
Three (3) foot VGA to (3) RCA adaptor cable.
Six (6) foot USB cable.
December 1, 2014
Page 8
Part No.
00-00235
25-00094
30A00400A03
30-00146
30-00203
30-00163
Revision A7
