780B Video Generator/Analyzer – User Guide

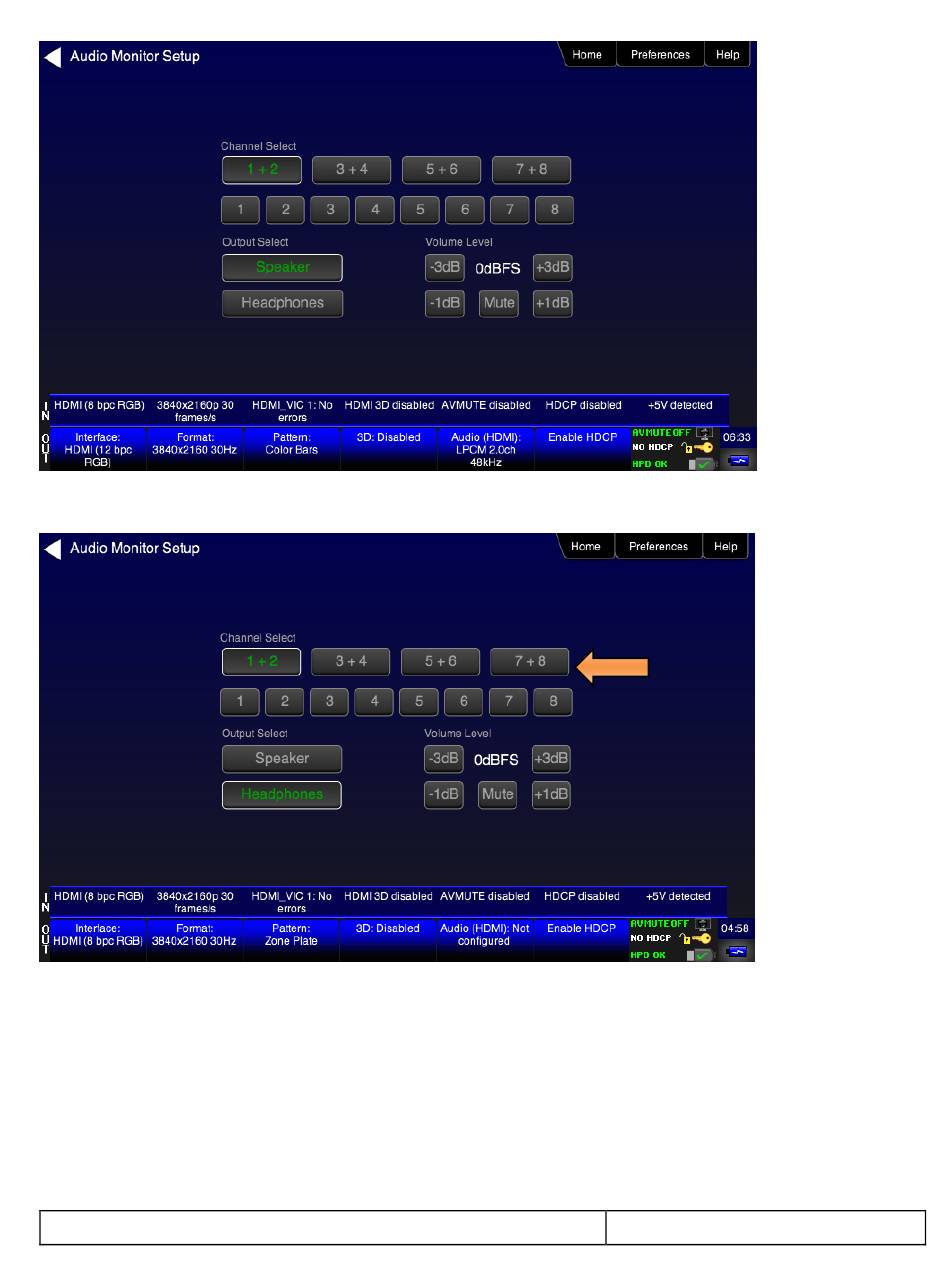

3. Select the pair of channels to monitor through the headphone jack using the Headphone Channels set of
selection buttons.
4. Specify the Headphone amplitude in increments of +/-3dB or =/-1dB using the buttons under Headphone
Level. Select Mute to extinguish the audio.
December 1, 2014
Page 103
Revision A7
