780B Video Generator/Analyzer – User Guide
1. Make the physical connections between the 780B HDMI OUT connector and the display device under test.
2. Enable the HDMI output using the procedures at

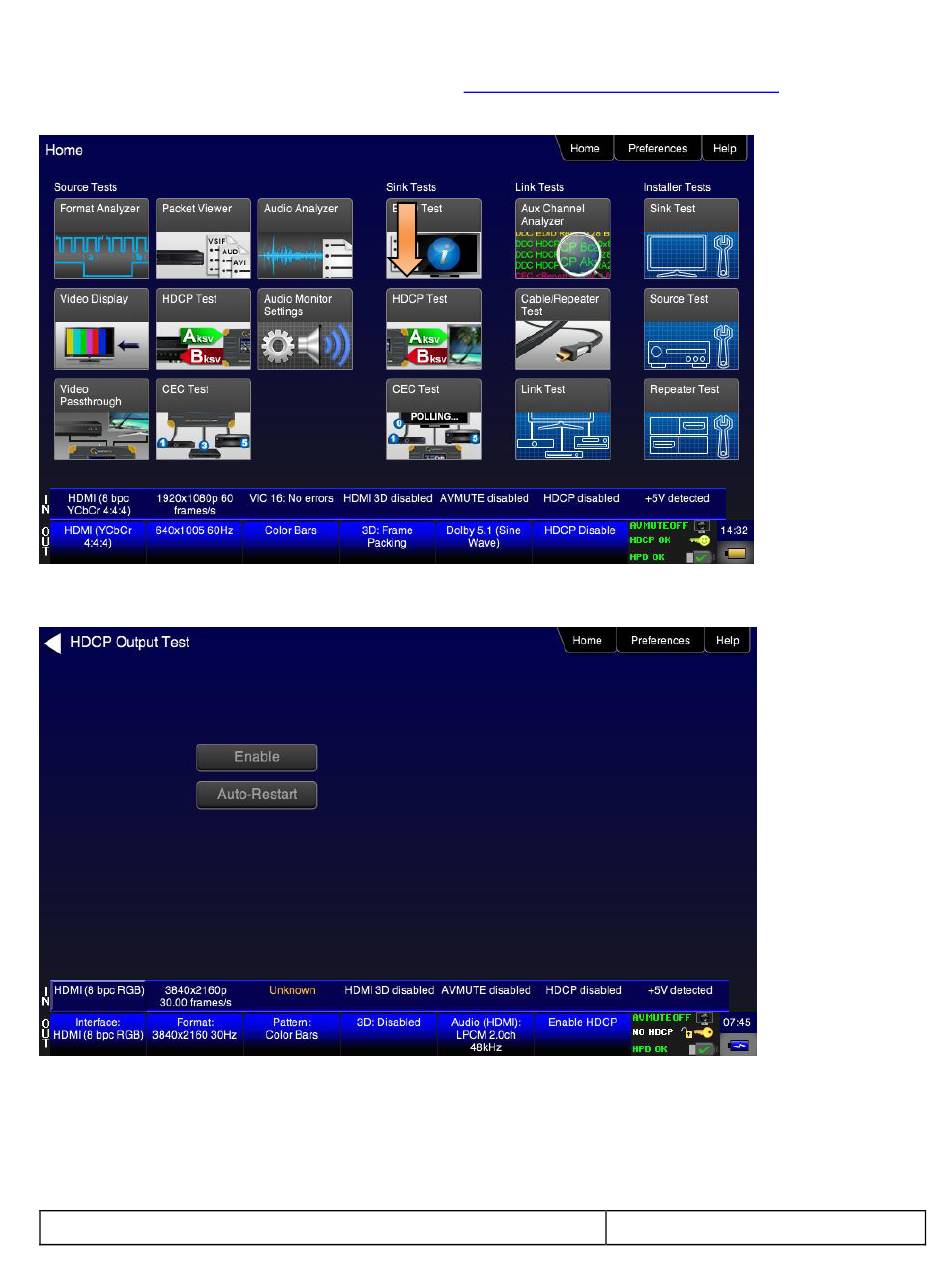

3. Touch select HDCP Test from the Home menu shown below.
4. Touch select Enable from the HDCP Output Tests menu shown below.
The Pass/Fail results and the key values exchanged during the authentication are presented on the display
as shown below:
