780B Video Generator/Analyzer – User Guide
Page 56
Alternatively you may connect from the 780B video output connector to an HDTV through an HDMI
repeater device such as an A/V receiver. In this case make the HDMI connection between the HDMI OUT
connector on the 780B and the HDMI input of the HDMI repeater device using an HDMI-to-HDMI cable.
Then connect the HDTV to an active output on the repeater. The following illustrations depict the typical
test configurations.

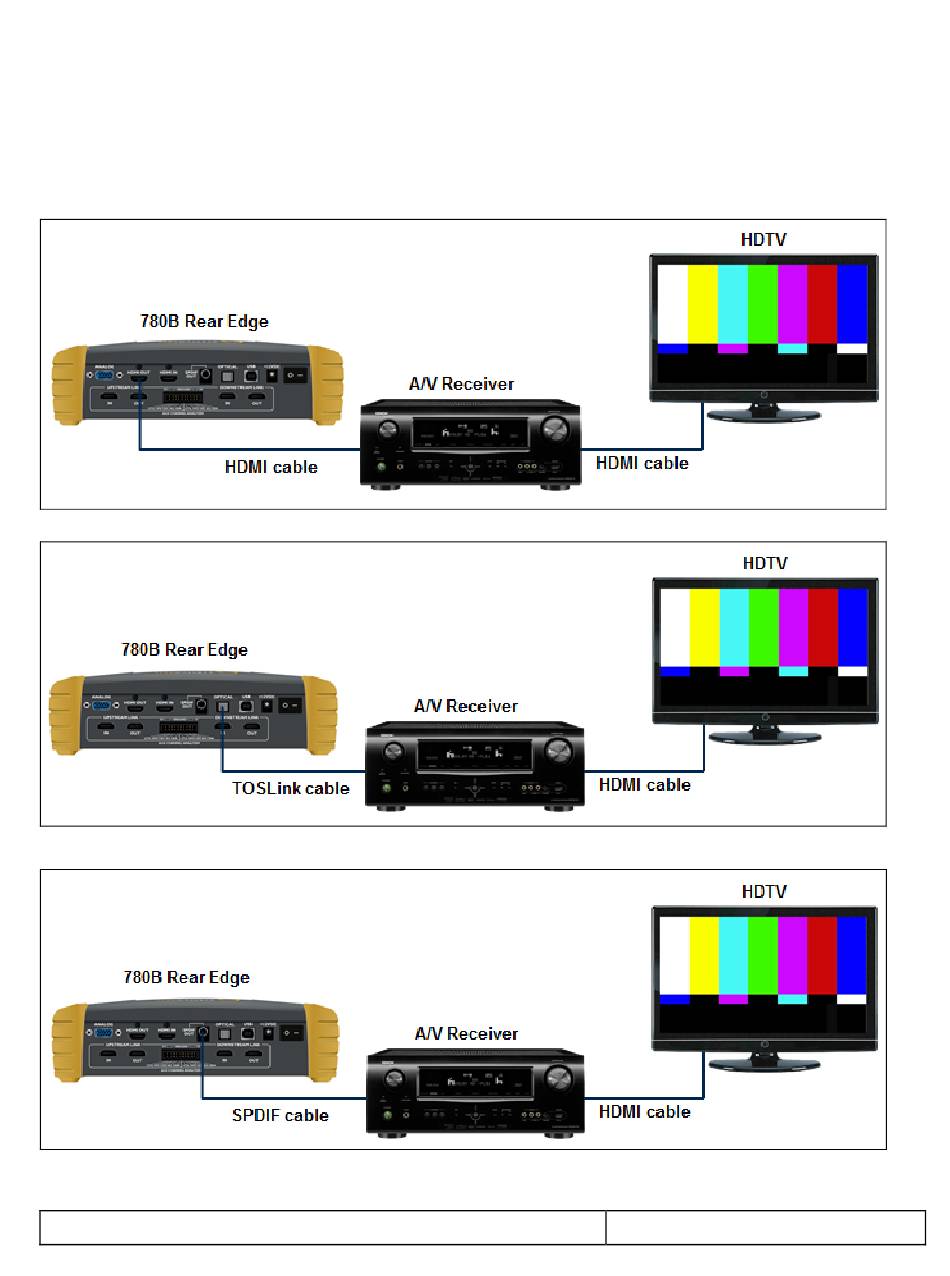

The following illustrations depict the test setups for the HDMI audio, SPDIF audio and optical (TOSLink).
Note also that you can test directly into an HDTV without going through an A/V receiver.
