Navigating through the 780B User Interface

The 780B user interface is a color touch screen display 800 by 480. A single touch will activate an item on the
screen or take you down to a lower level menu. A + indicates that you have to double touch to navigate down to
a lower level menu.

3.3.1 Home Menu items

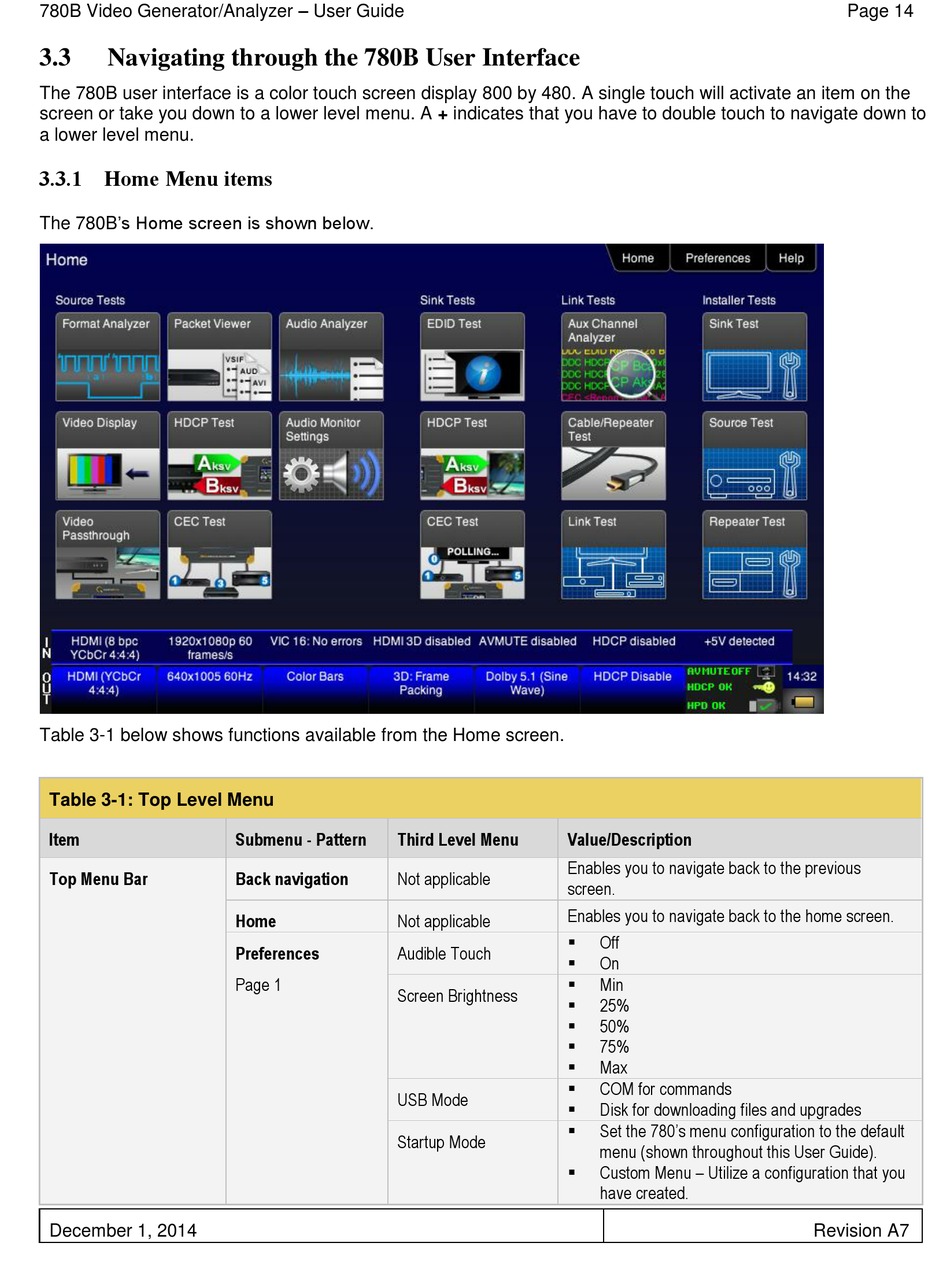

The 780B's Home screen is shown below.
Table 3-1 below shows functions available from the Home screen.
Table 3-1: Top Level Menu
Item
Top Menu Bar
December 1, 2014
Submenu - Pattern Third Level Menu
Back navigation Not applicable
Home Not applicable
Preferences Audible Touch
Page 1
Screen Brightness
USB Mode
Startup Mode
Value/Description
Enables you to navigate back to the previous
screen.
Enables you to navigate back to the home screen.
Off

 On
Min

25%

 50%
 75%
Max

 COM for commands
 Disk for downloading files and upgrades
Set the 780's menu configuration to the default

menu (shown throughout this User Guide).
 Custom Menu – Utilize a configuration that you
have created.
