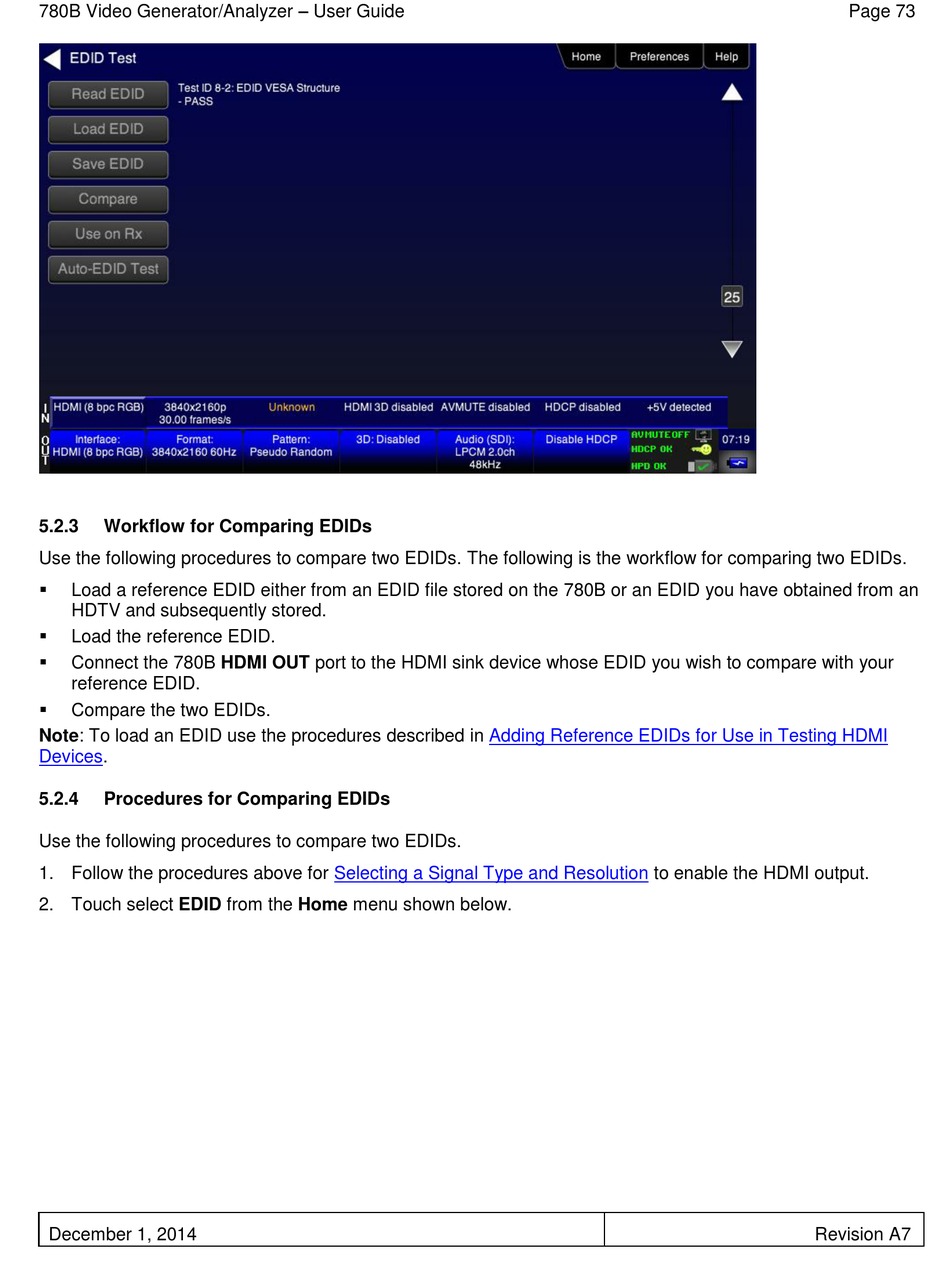

780B Video Generator/Analyzer – User Guide
5.2.3

Workflow for Comparing EDIDs

Use the following procedures to compare two EDIDs. The following is the workflow for comparing two EDIDs.

Load a reference EDID either from an EDID file stored on the 780B or an EDID you have obtained from an
HDTV and subsequently stored.

Load the reference EDID.

Connect the 780B HDMI OUT port to the HDMI sink device whose EDID you wish to compare with your
reference EDID.

Compare the two EDIDs.
Note: To load an EDID use the procedures described in
Devices.
5.2.4

Procedures for Comparing EDIDs

Use the following procedures to compare two EDIDs.
1. Follow the procedures above for
2. Touch select EDID from the Home menu shown below.
December 1, 2014
Adding Reference EDIDs for Use in Testing HDMI
Selecting a Signal Type and Resolution to enable the HDMI output.
Revision A7
Page 73
