780B Video Generator/Analyzer – User Guide

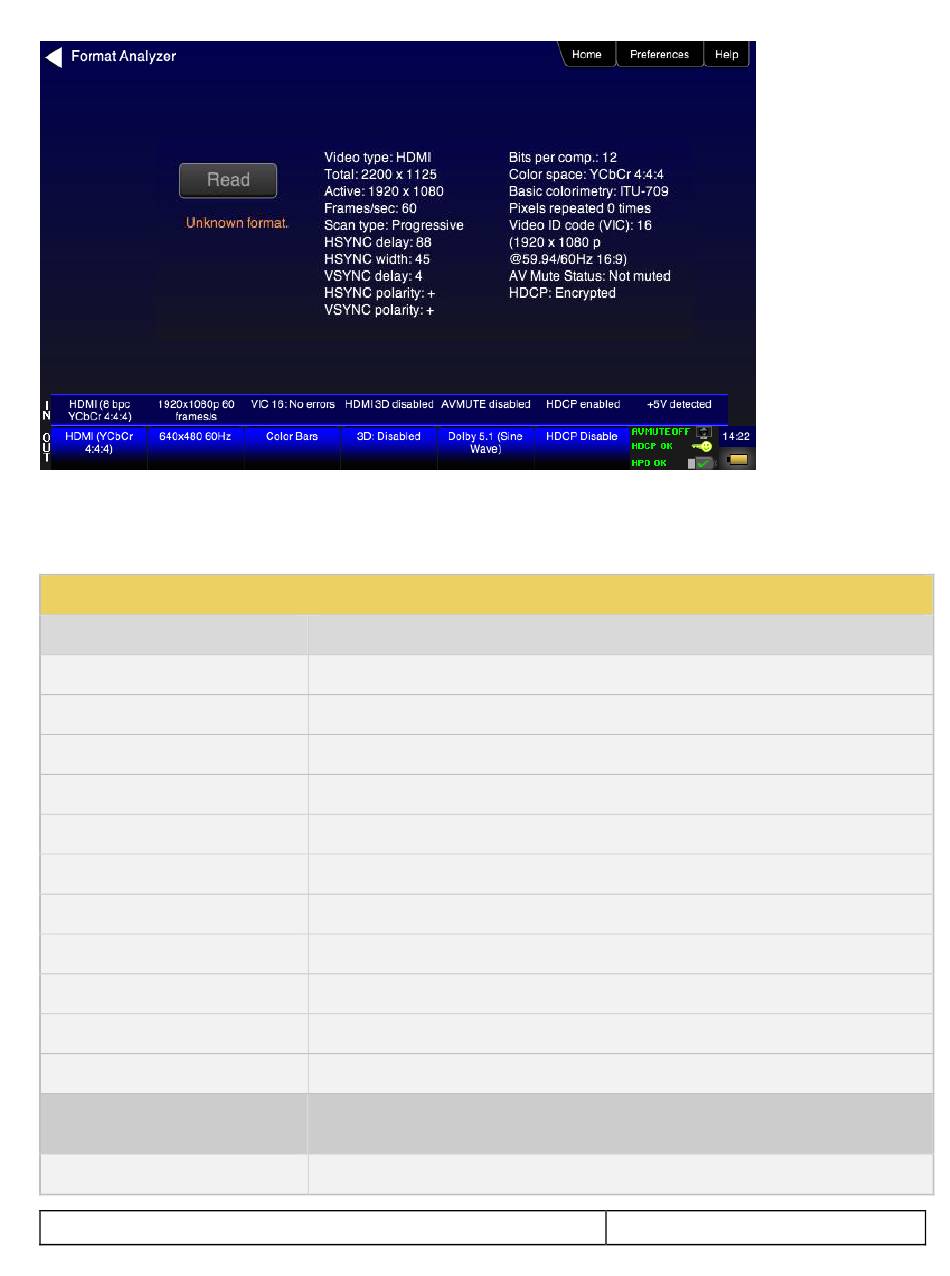

Table 6-2 below describes each field in the Format Analyzer on-screen report. The basic timing information
is shown on the left of the resulting screen and the AVI infoframes received are displayed on the right. Also
displayed on the right side is an indication of the status of HDCP encryption.
Table 6-2: Format Analyzer
Timing Parameters (left side)
Video Type
Total
Active
Frames/sec
Scan Type
HSYNC delay
HSYNC width
VSYNC delay
VSYNC delay
HSYNC polarity
VSYNC polarity
AVI Infoframe Parameters
(right side)
Bits per comp
December 1, 2014
Description
Indicates whether the source is HDMI or DVI.
Total horizontal and vertical resolution including blanking.
Total active horizontal and vertical resolution excluding blanking.
The frame rate of the HDMI/DVI input source.
Indicates whether the HDMI/DVI input source is progressive or interlaced.
The horizontal sync pulse delay in pixels.
The horizontal sync pulse width in pixels.
The vertical sync pulse delay in lines.
The vertical sync pulse width in lines.
The polarity of the horizontal sync pulse; either positive (+) or negative (-).
The polarity of the vertical sync pulse; either positive (+) or negative (-).
Description
The number of bits per component color. Can be 6, 8, 10, 12, 16.
