780B Video Generator/Analyzer – User Guide

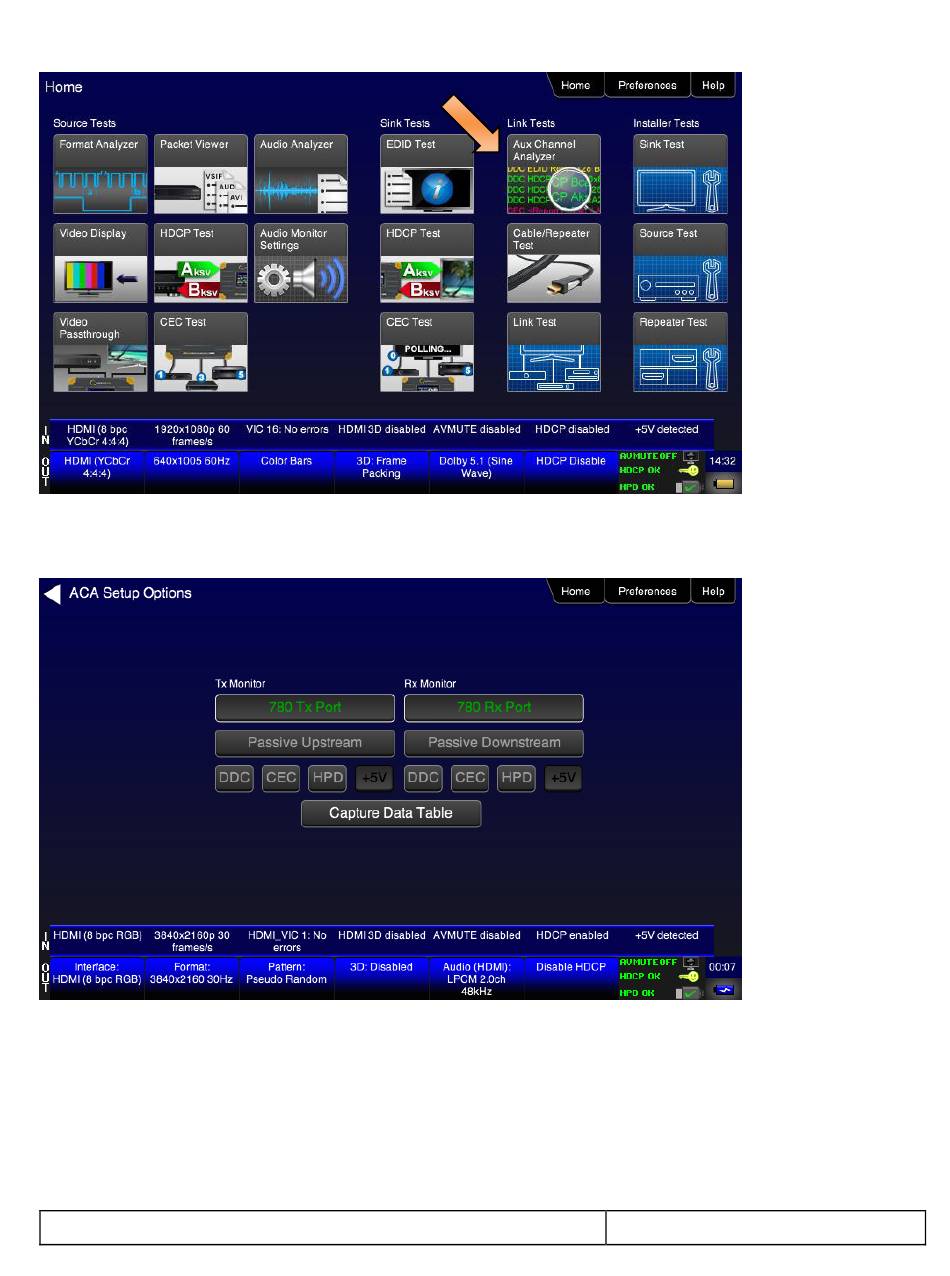

2. From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
The ACA Setup Options screen appears:
4. Select the data types that you wish to monitor. In this application you would select data types from the Tx
Port side.
5. Determine what data types you wish to monitor. Typically you will want to monitor the DDC and hot plug
(+5V only available with passive monitoring option).
Note: By default the two activation buttons labeled 780B Tx Port and 780B Rx port are enabled. You
cannot disable them. Transactions will be shown based on which ports (HDMI OUT and/or HDMI IN) are
