780B Video Generator/Analyzer – User Guide

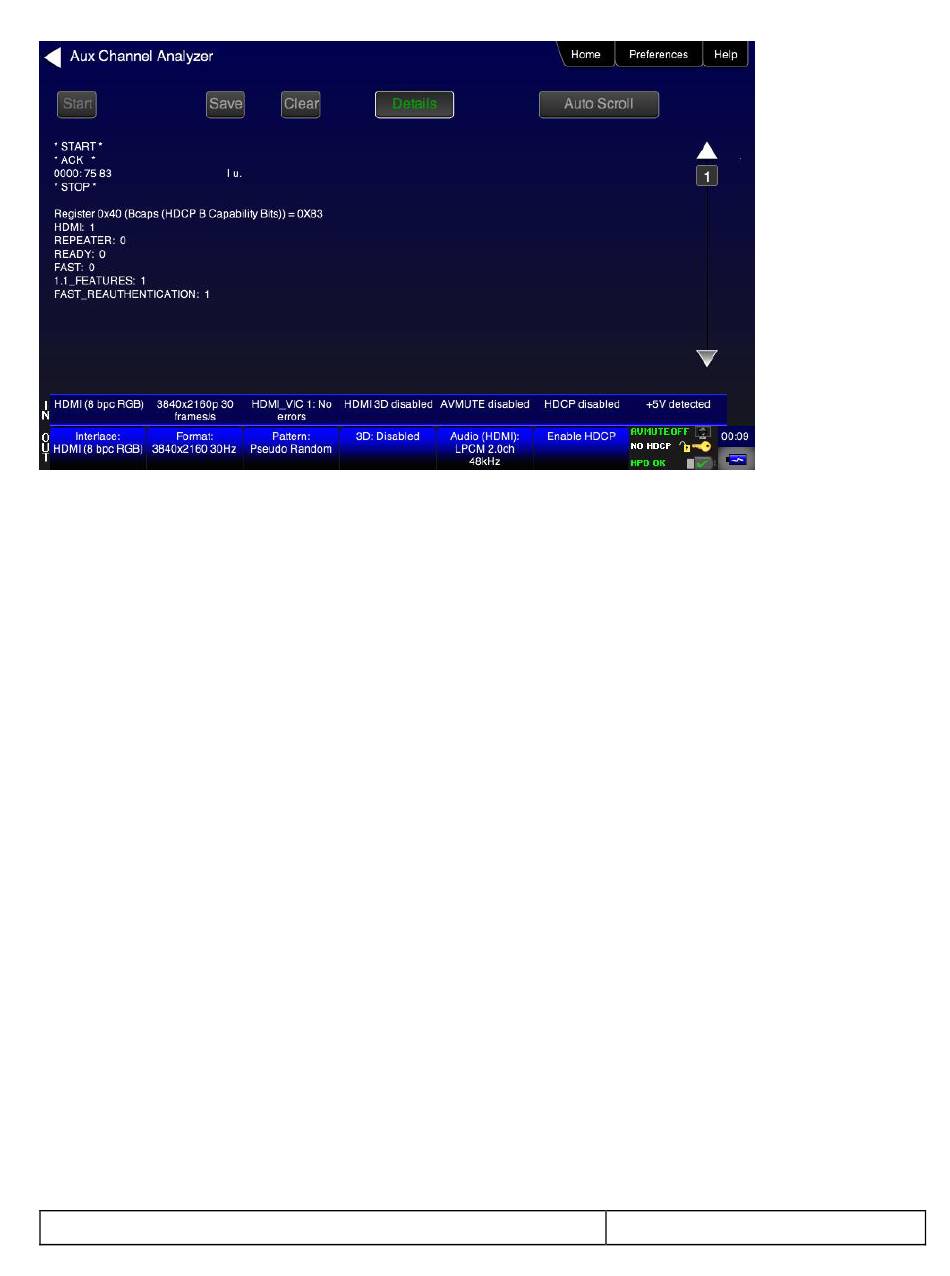

11. Touch select Stop activation button (top left) to halt the collection of messages.
12. Touch select Clear activation button (top center) to clear the collected of messages.
8.2.3 Procedures for Passive Monitoring CEC Messages with the Auxiliary Channel Analyzer on HDMI
Devices
This subsection provides procedures for ACA passive monitoring of HDMI devices.
Note: You will have to obtain a license key for the ACA passive monitoring option to use the feature.
1. Connect the HDMI system devices to the 780B as shown in the diagram above and described as follows:
a. The HDMI source is connected to the 780B Upstream Link IN connector.
b. The HDMI repeater device input is connected the 780B Upstream Link OUT connector.
c. The HDMI repeater device output is connected to the 780B Downstream Link IN connector.
d. The HDMI sink device (e.g. HDTV) is connected to the 780B Downstream Link OUT connector.
2. From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
