780B Video Generator/Analyzer – User Guide

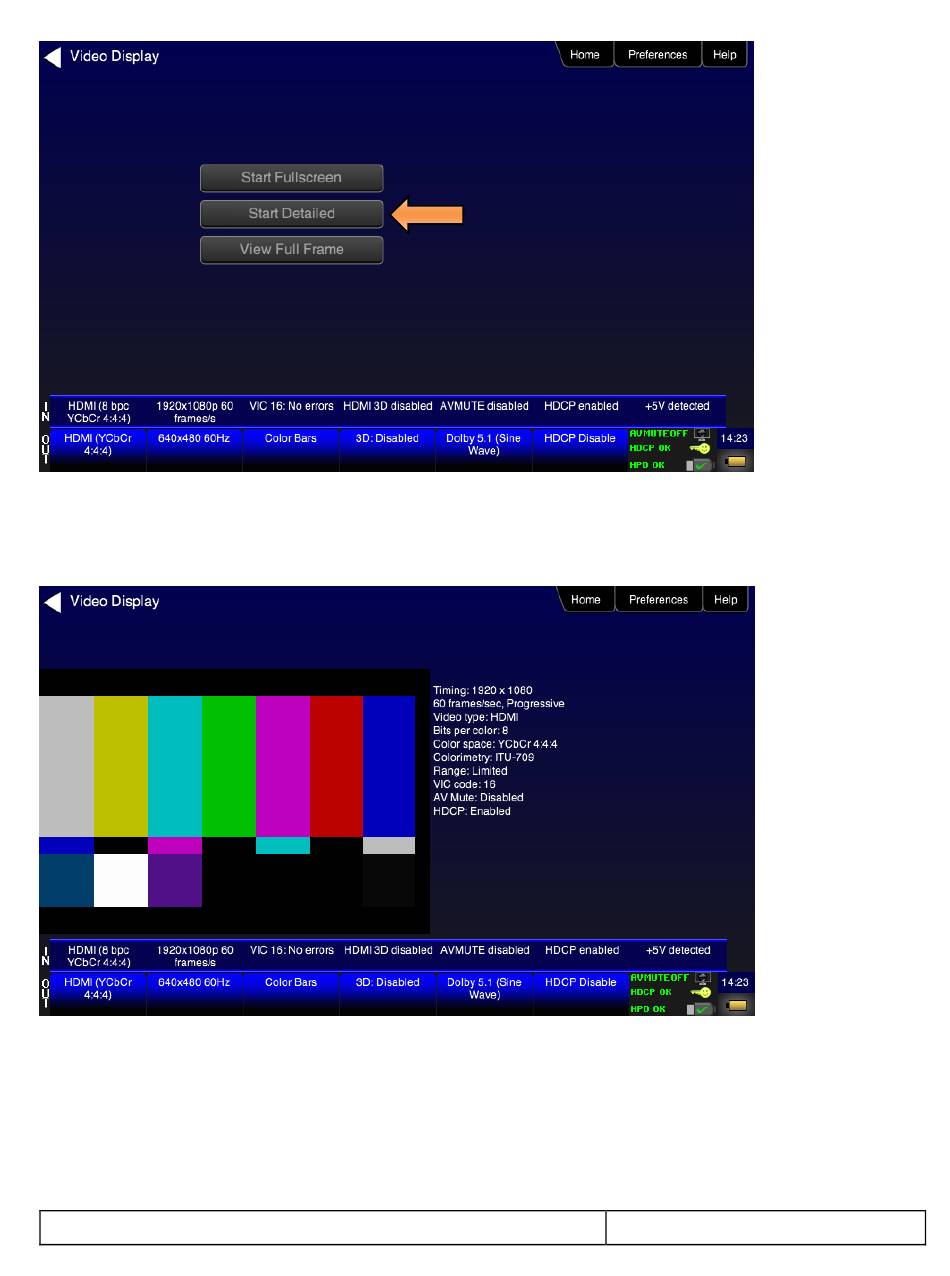

5. Touch select the Start Detailed activation button on the Video Display menu to view the incoming video
along with the metadata from the source device under test. In this example a test pattern is shown.
Note also that the HDCP encryption status and AVmute status is shown in addition to the AVI infoframe
values.
6. Return to the Source Test menu by touching the LCD. The Source Test menu reappears.
7. For the 780B you have the additional option of capturing and viewing a captured bitmap of the entire
resolution of the incoming video View Full Frame.
December 1, 2014
Page 53
Revision A7
