780B Video Generator/Analyzer – User Guide
10. Touch select Stop activation button (top left) to halt the collection of messages.
11. Touch select Clear activation button (top center) to clear the collected of messages.
8.1.3

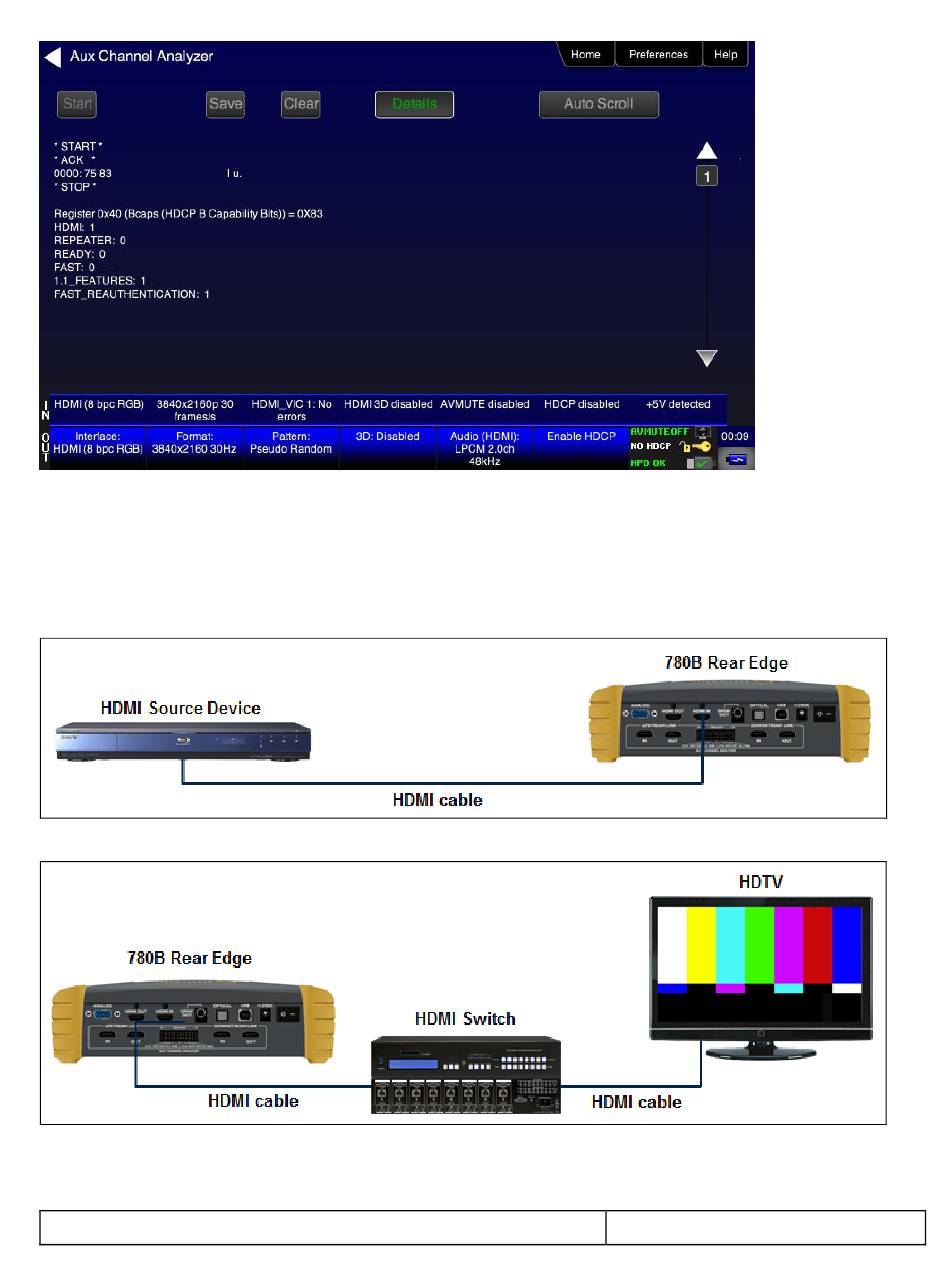

Configurations for Monitoring DDC Transactions with ACA on HDMI Source Devices

This subsection provides configuration diagrams that depict ACA monitoring of HDMI source devices, with or
without a repeater, while the 780B is emulating an HDMI sink device.
8.1.4 Procedures for Monitoring the DDC Transactions using the Auxiliary Channel Analyzer on HDMI
Source Devices
