780B Video Generator/Analyzer – User Guide
The results of the test are shown on the screen.
6.3.3

Procedures for disabling HDCP on the 780B Rx port - GUI

You can disable the HDCP registers of the 780/780A's Rx port to test how your source device responds to
HDCP being disabled. You can disable the HDCP port either through the GUI or through the command line.

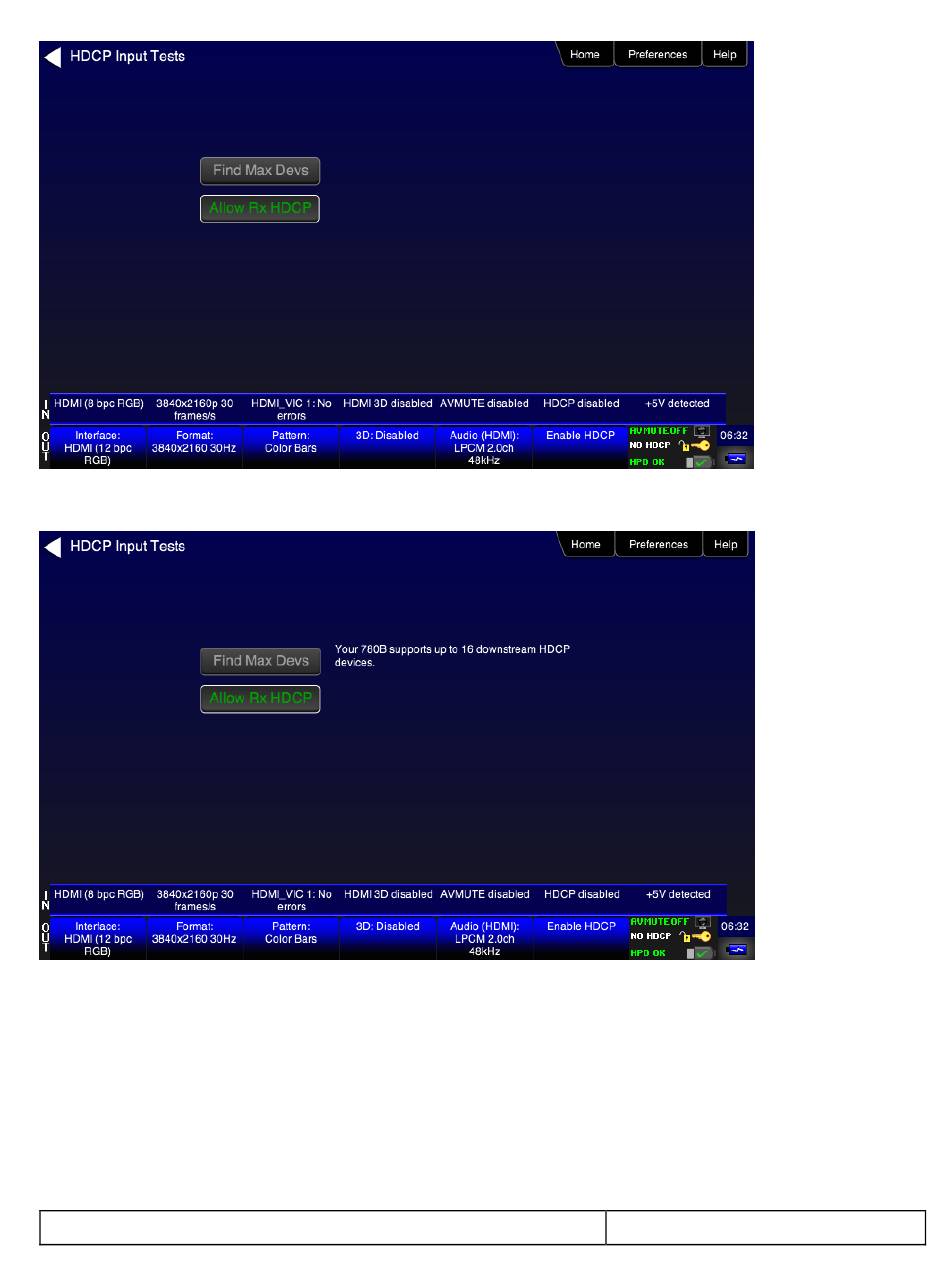

1. Touch select the Allow Rx HDCP activation button to enable / disable HDCP. When the button is green
HDCP is enabled.
Note: You can also disable HDCP on the HDMI Rx port using the Allow Rx HDCP toggle button. See
procedures below.
