780B Video Generator/Analyzer – User Guide
Page 117
7.2.2

Procedures for Testing Downstream (Sink Test) with the Installer Utility

Use the following procedures to test the video from an HDMI sink device.

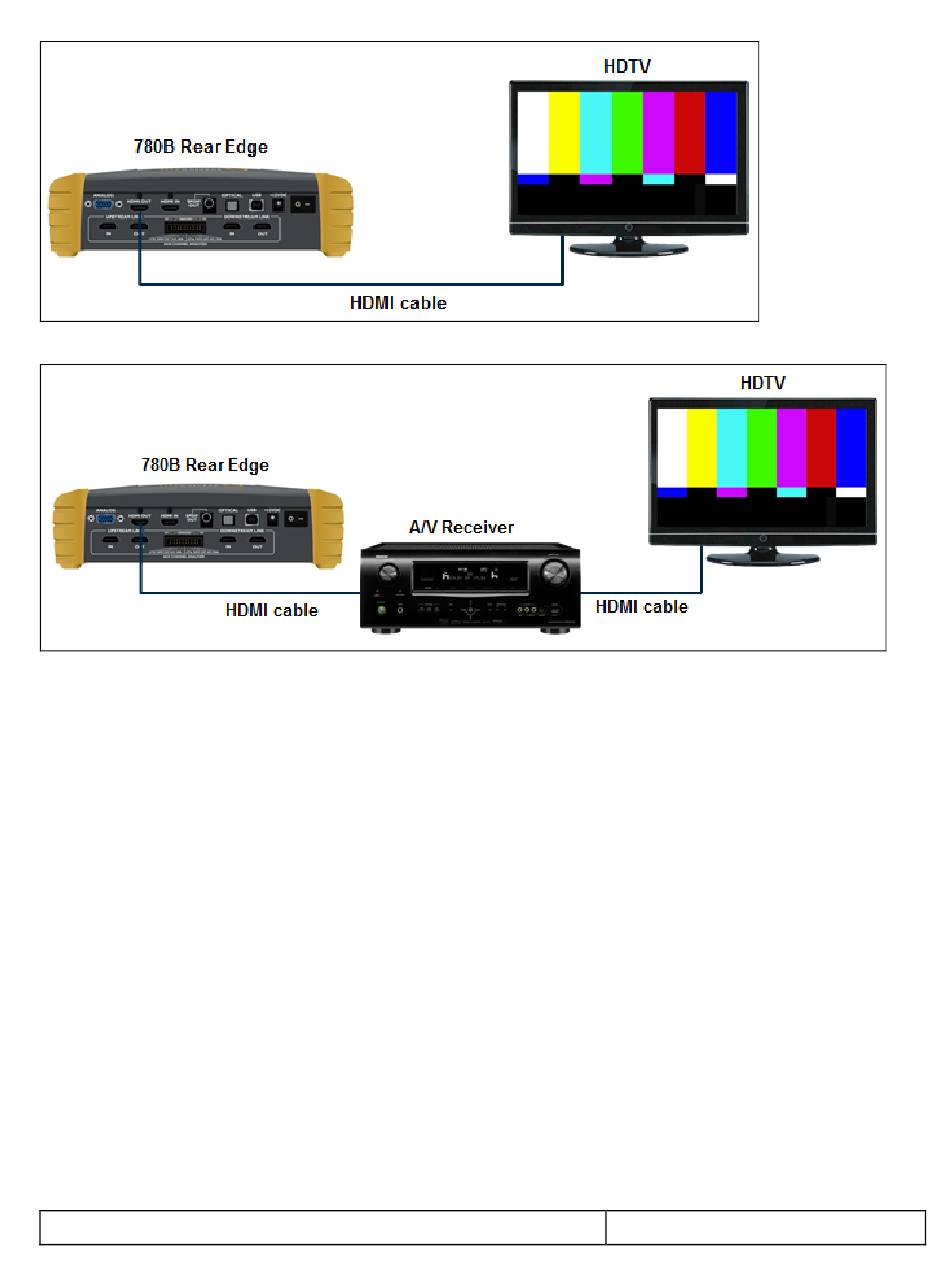

1. Make the physical connection between the 780B HDMI OUT port and the sink device under test using the
configuration instructions above or by following the instructions on the screen.
2. Touch select Sink Test under the Installer Tests from the Home menu shown below.
December 1, 2014 Revision A7
