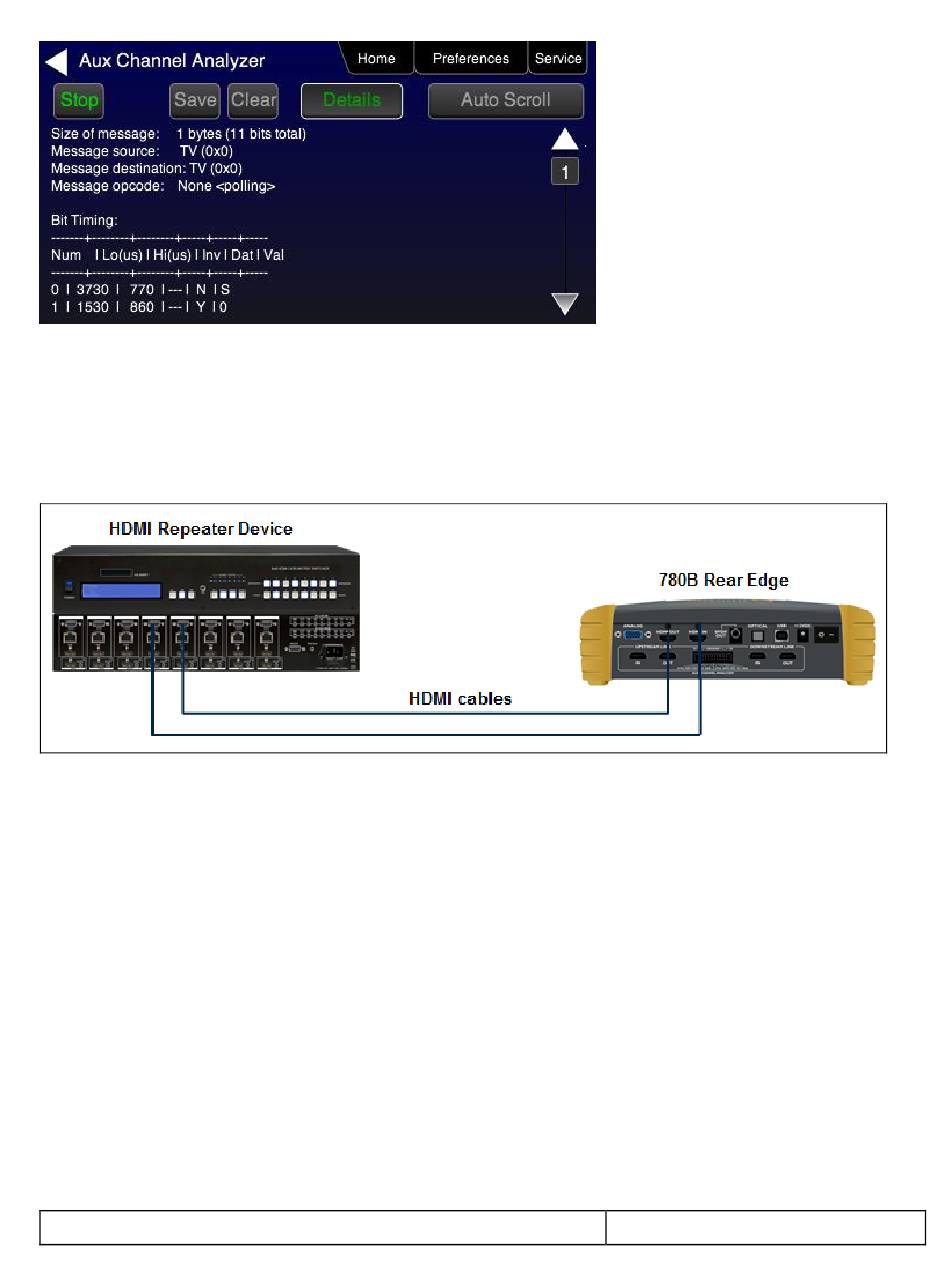

7. Touch select Stop activation button (top left) to halt the collection of messages.
8. Touch select Clear activation button (top center) to clear the collected of messages.
8.1.6

Configuration for Monitoring DDC Transactions with the ACA on a Repeater

This subsection provide a configuration diagram that depicts ACA monitoring of HDMI repeater devices while
emulating both an HDMI source device and an HDMI sink device.
8.1.7 Procedures for Running an Auxiliary Channel Analyzer Test on HDMI Repeater Devices
This subsection provides procedures for ACA monitoring of HDMI repeater devices while the 780B is emulating
both an HDMI sink device and an HDMI source device.
1. Connect the HDMI system devices to the 780B as shown in the diagram above and described as follows:
a. The HDMI repeater device input is connected the 780B HDMI OUT connector.
b. The HDMI repeater device output is connected to the 780B HDMI IN connector.
From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
