Important Note: It is very important to ensure that the names in the userpats.txt file match the names of
the bitmaps.
Example: Given the following bitmap file names:
MYBRTS 10.bmp
Your userpats.txt file would be something like the following:
Note: Must use 8.3 naming system. Eight (8) characters. The names in the name field (first field) must
match the bitmap names.
Mast720.bmp Master 720
Mast1080.bmp Master 1080
MYPLG07.bmp BlkPlug 720
MYPLG10.bmp BlkPlug 1080
MYGEO07.bmp Geom178 720
MYGEO10.bmp Geom178 1080
MYBRTS07.bmp RGMultBurst 720
MYBRTS10.bmp RGMultBurst 1080

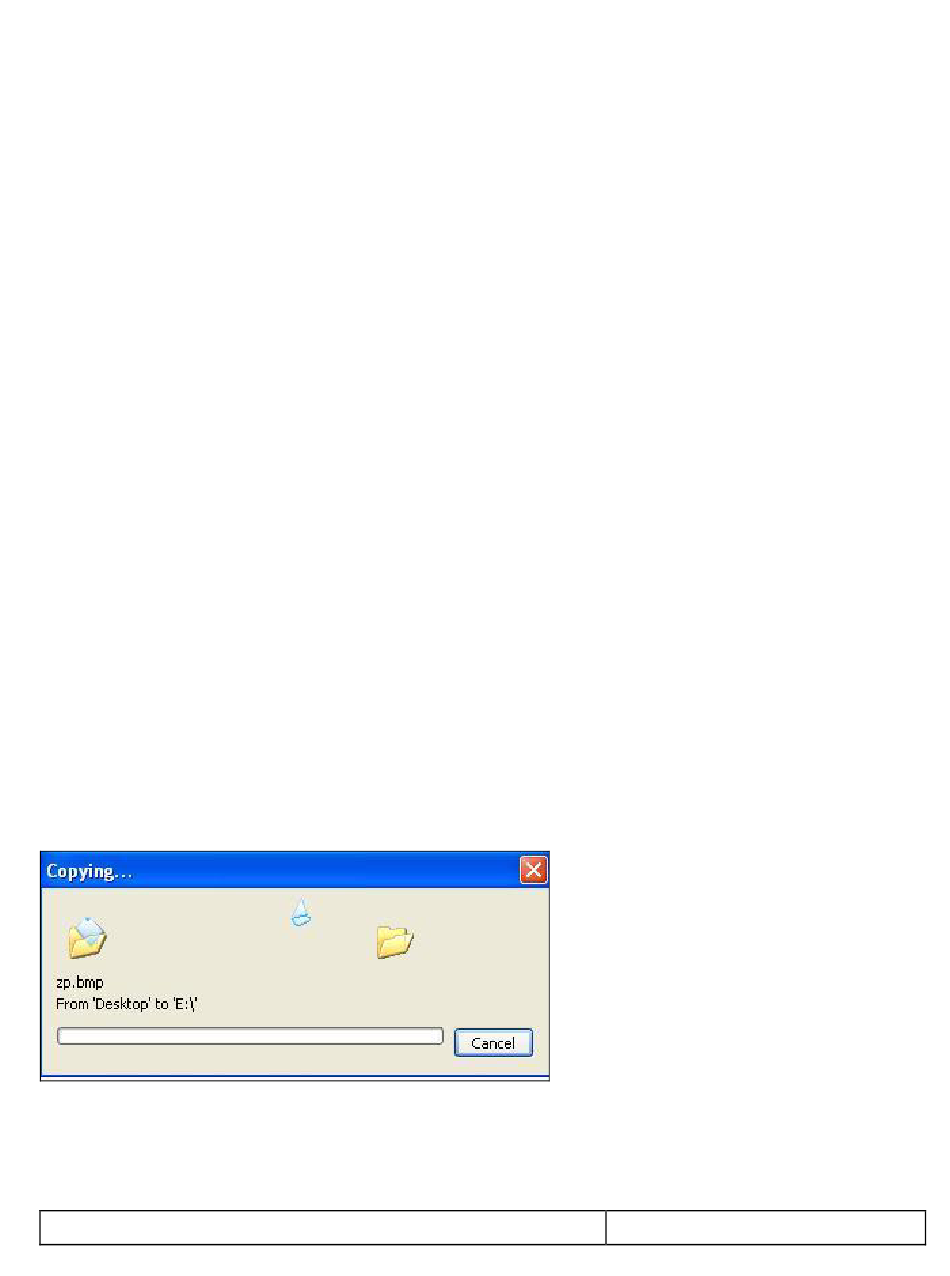

7. Transfer your userpats.txt file from your PC to the 780B using standard Windows methods for transferring
files to a USB drive, i.e. by dragging and dropping or copying and pasting.
Note: Your bitmaps are limited to 8 characters with an extension (.bmp).
8. Transfer your bitmap(s) from your PC to the 780B using standard windows procedures for transferring files
to a USB drive, i.e. dragging and dropping or copying and pasting.
9. Touch select the Preferences from the 780B top level menu. Refer to the screen below.
