780B Video Generator/Analyzer – User Guide
Page 120
7.3.2

Procedures for Testing Repeaters (Repeater Test) with the Installer Utility

Use the following procedures to test the video from an HDMI repeater device with the Installer Utility.

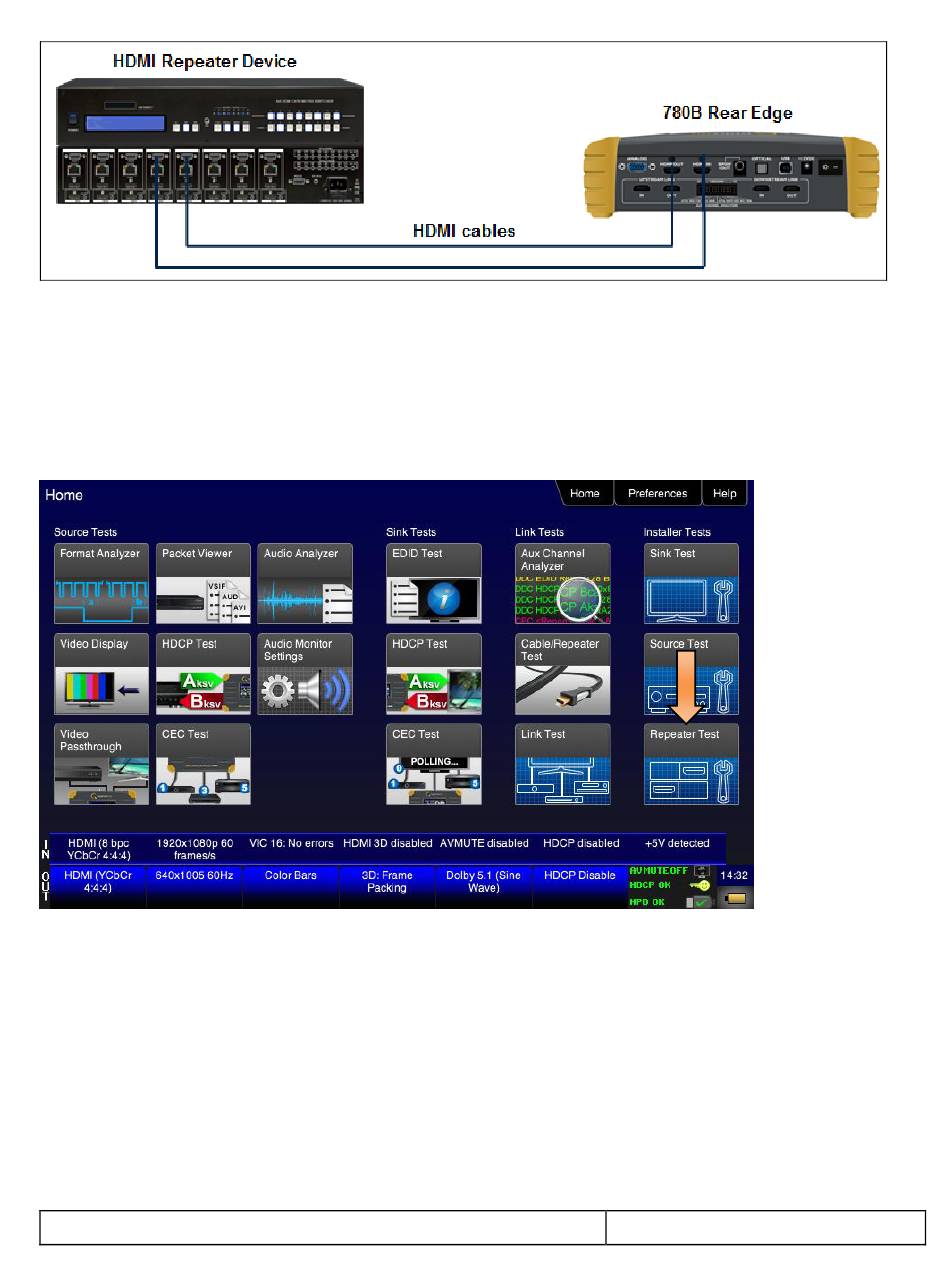

1. Make the physical connections between the 780B HDMI IN and OUT ports and the sink device under test
using the configuration instructions above or by following the instructions on the screen.
2. Touch select Repeater Test from Installer Tests from the Home menu shown below.
The Repeater Test screen will appear as shown below.
December 1, 2014 Revision A7
