780B Video Generator/Analyzer – User Guide
Page 212

13 Using the Keypad

This section provides information and procedures for operating the 780B with a keypad. The 780B can support
keypad operation to enable efficient production test operation. An RS-232 numeric keypad is used for this
application. Supported keypad functions include selection of interface, timing, pattern, and test sequences.

13.1 Connecting a Keypad

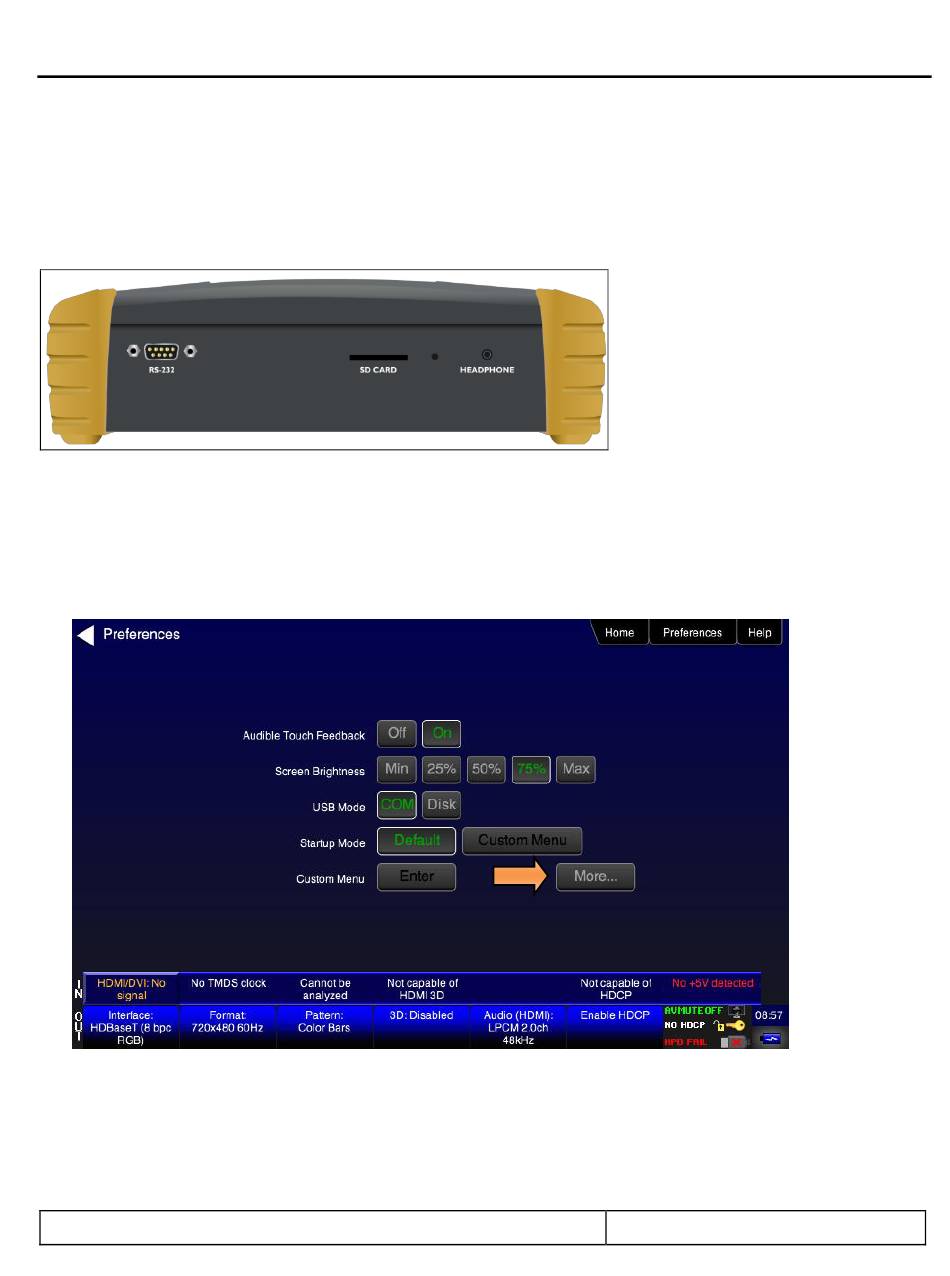

A serial terminal keypad can be connected to the 780B front edge RS-232 connector.

13.2 Enabling and Configuring an RS-232 Keypad

The RS-232 keypad must be enabled and configured from the 780B Preferences menu. Use the following
procedures to enable a keypad.
1. From the 780B Home menu, select the Preferences tab. The Preferences menu will be displayed as
shown below.
2. Navigate to the second page using the More button.
December 1, 2014 Revision A7
