780B Video Generator/Analyzer – User Guide

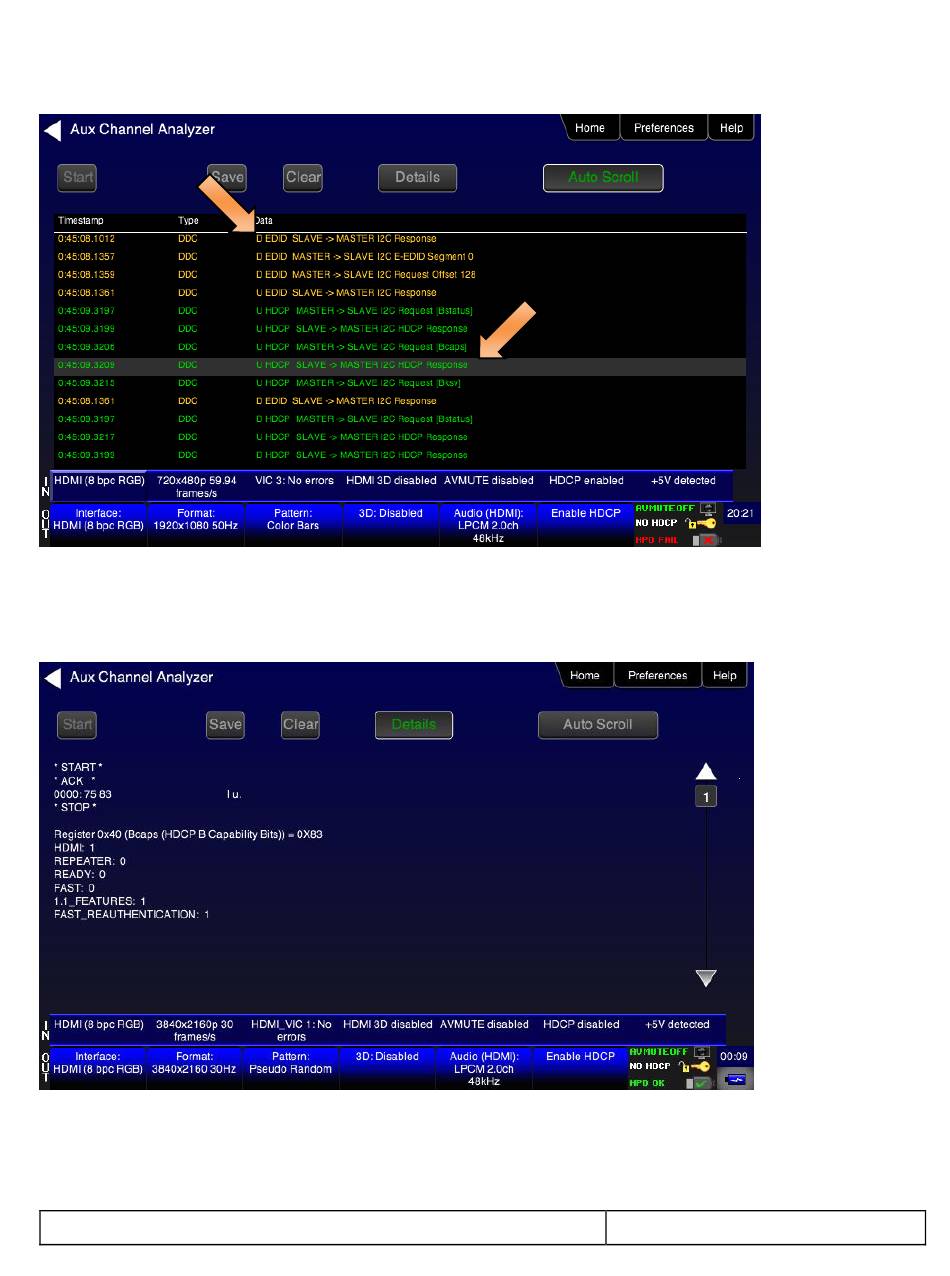

7. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear. Note that there are both upstream and downstream transactions (U
and D).
8. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen. This example shows the
BCAPS register details.
9. Touch select Stop activation button (top left) to halt the collection of messages.
10. Touch select Clear activation button (top center) to clear the collected of messages.
December 1, 2014
Page 152
Revision A7
