780B Video Generator/Analyzer – User Guide
Page 121

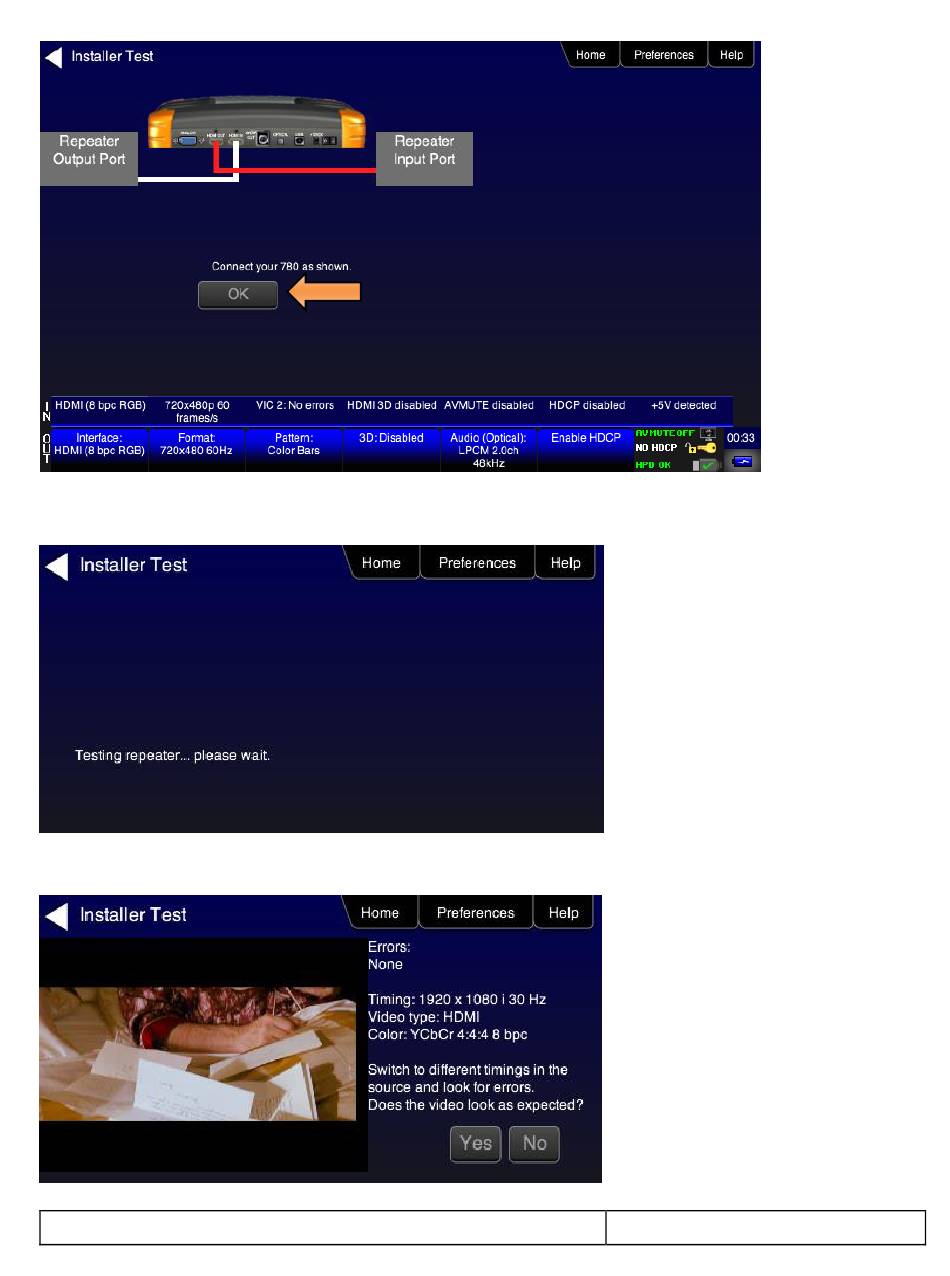

3. Touch select the OK activation button to initiate the test.
The test will run for up to about a minute. A status screen is provided as shown below.
You will be instructed to switch to different timings and verify that the video displayed on the 780B screen looks
correct. Touch select the appropriate the activation button YES or NO.
December 1, 2014
Revision A7
