Procedures for Running an HDMI Cable or Network ("Repeater") Test

9.1.2
This subsection provides procedures for performing an HDMI cable test or a test of an HDMI network
comprised of repeaters, splitters, extenders, switches, etc.

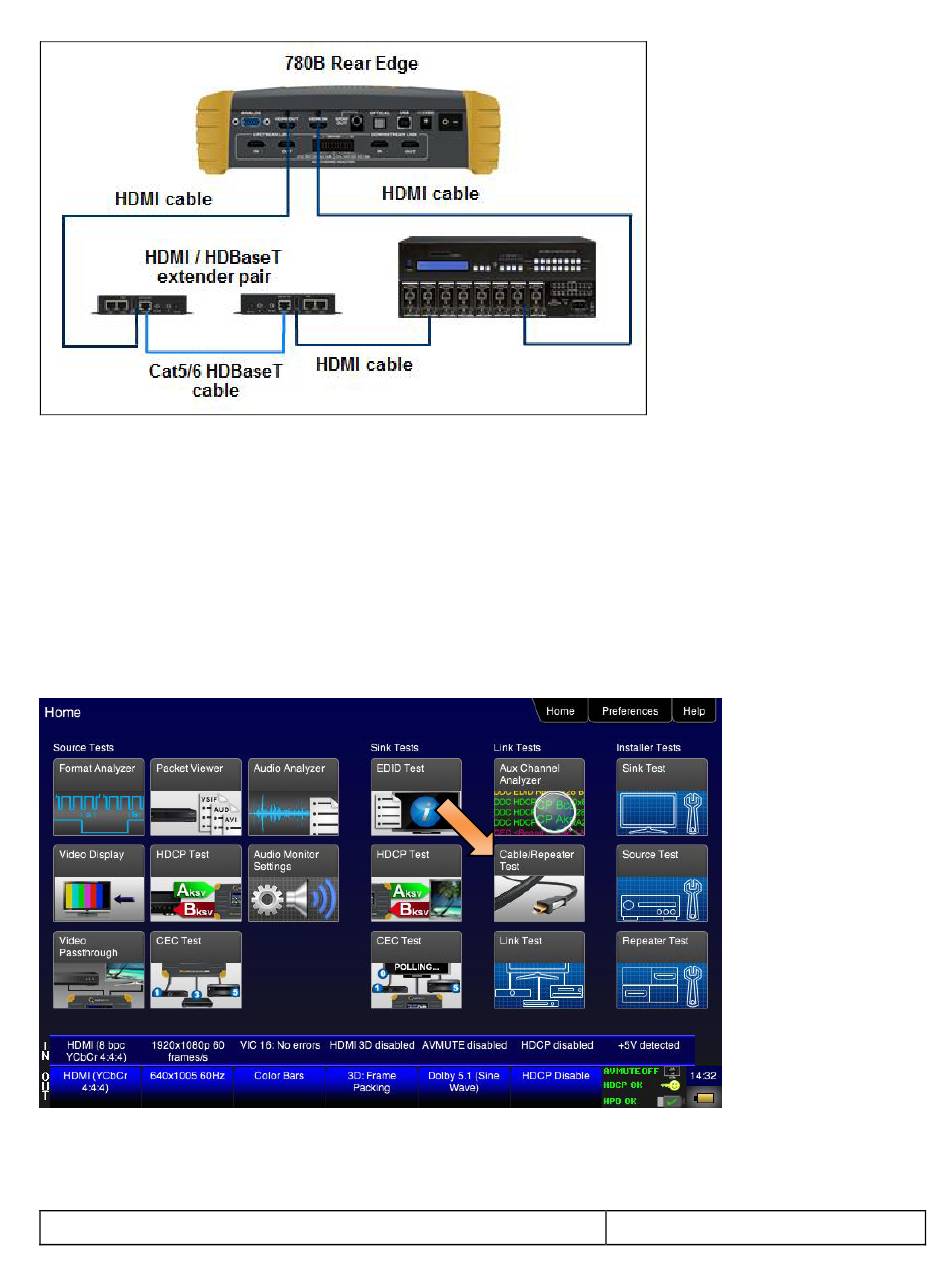

1. For testing an HDMI cable, connect one end of the HDMI cable to the 780B HDMI OUT connect and the
other end to the 780B HDMI IN connector.
For testing an HDMI repeater device such as a repeater, video or audio processor, extender, switch, etc,
connect the 780B HDMI OUT connector to the repeater device input and connect the 780B HDMI IN
connector to the repeater device output.
2. Touch select Cable/Repeater Test from the Home menu shown below.
3. For testing an HDMI cable touch select Test Wire to initiate the test.
