780B Video Generator/Analyzer – User Guide

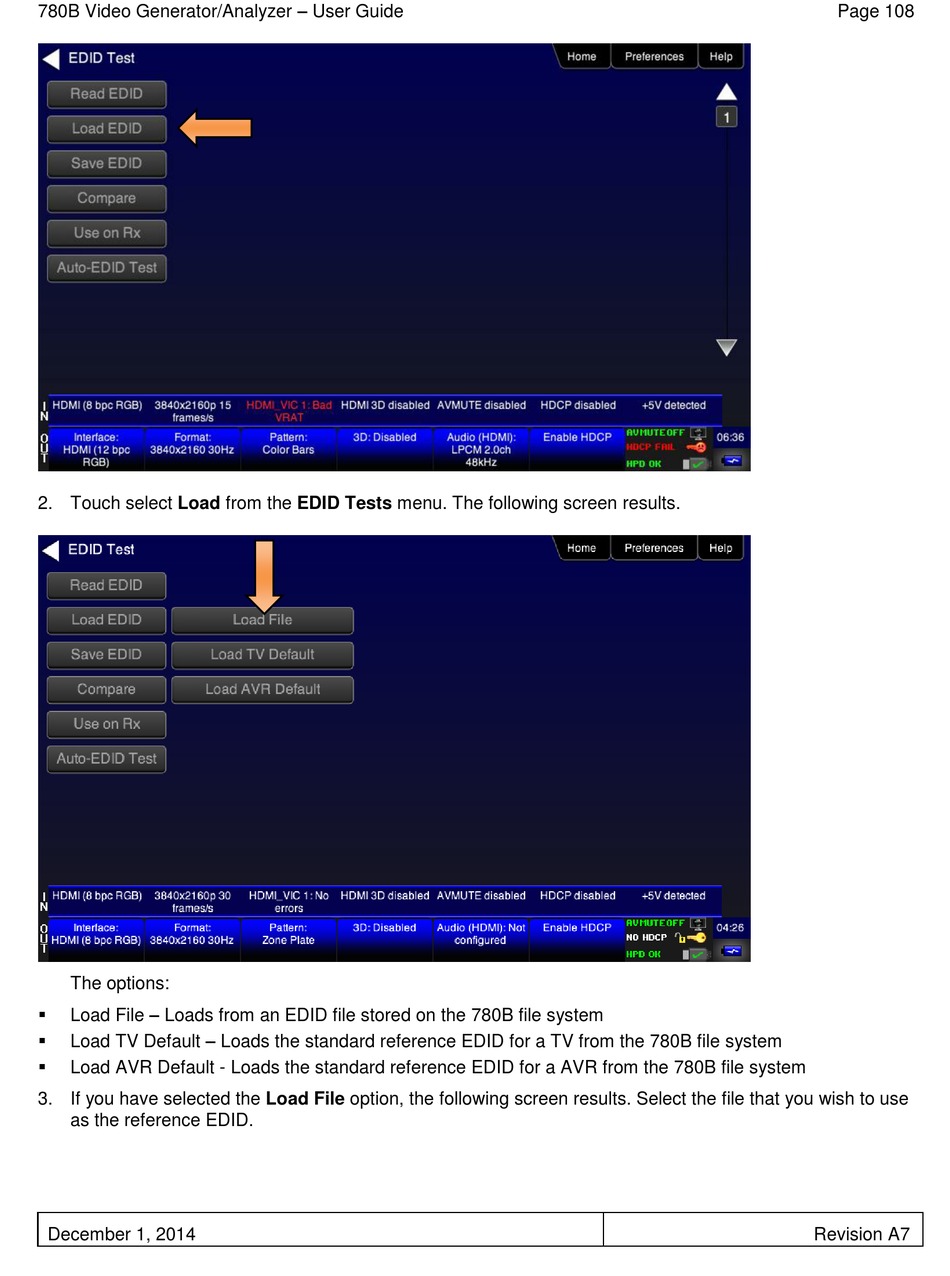

2. Touch select Load from the EDID Tests menu. The following screen results.
The options:
Load File – Loads from an EDID file stored on the 780B file system
Load TV Default – Loads the standard reference EDID for a TV from the 780B file system
Load AVR Default - Loads the standard reference EDID for a AVR from the 780B file system
3. If you have selected the Load File option, the following screen results. Select the file that you wish to use
as the reference EDID.
December 1, 2014
Page 108
Revision A7
