780B Video Generator/Analyzer – User Guide

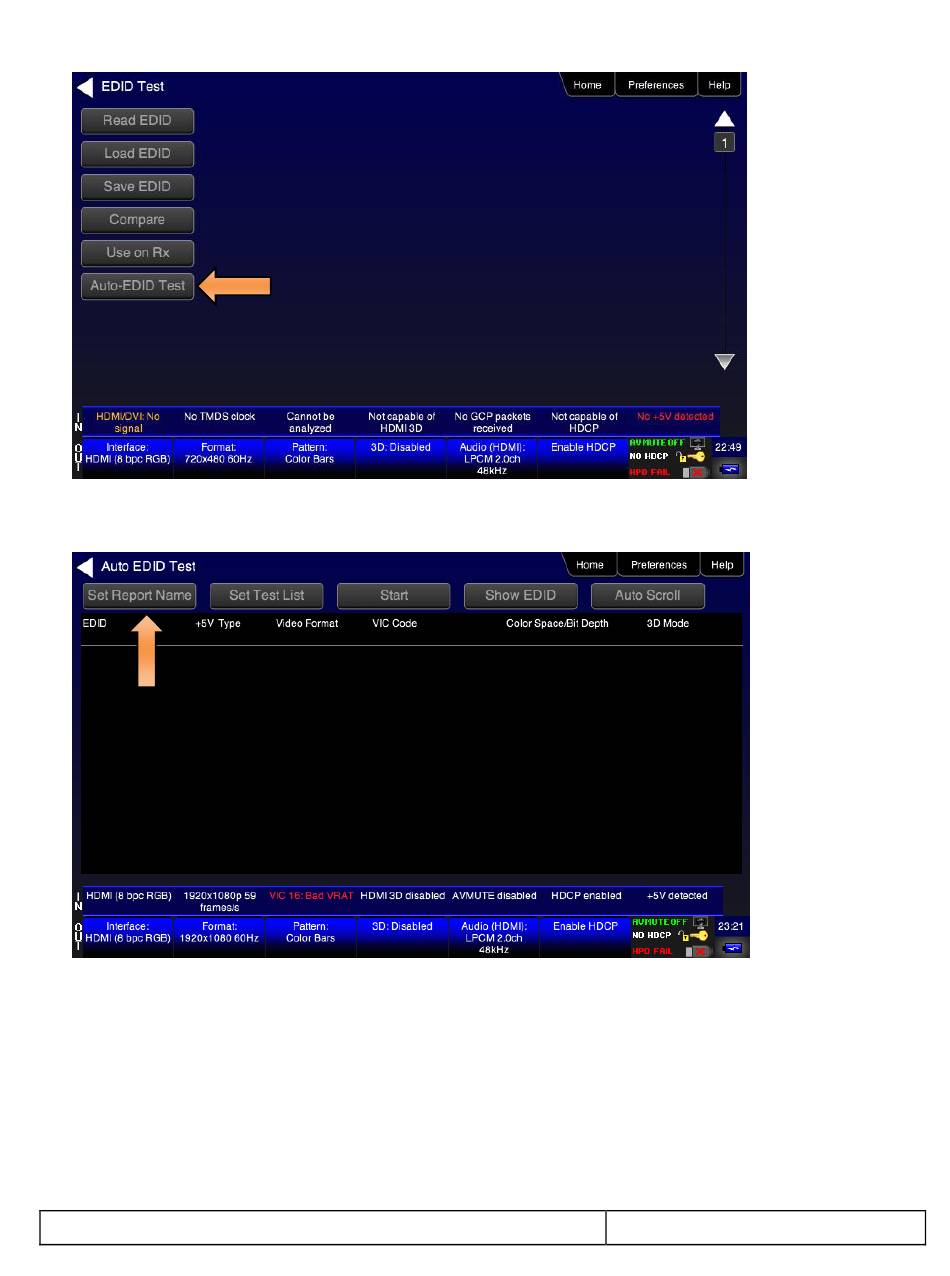

2. From the EDID Test screen, touch select Auto-EDID Test as shown below.
The Auto-EDID Test screen appears.
3. From the Auto-EDID Test screen optionally select Set Report Name as shown below.
A Virtual Keyboard screen appears enabling you enter a name for the report. This screen is shown in the
next step in this procedure.
Important Note: You will have to have installed a suitable SDCard into the 780B at the SDCard input on
the front edge. Refer to the image below. You will have to install the SDCard before you boot up the
780B and run the test. If you have not installed the SDCard, install the SDCard now, power cycle the 780B
and repeat the previous steps.
December 1, 2014
Page 168
Revision A7
