Testing HDCP Max Devices on an HDMI Source Device

This subsection describes how to run a test of the number of HDCP devices an HDMI source device supports.
The Max HDCP devices test runs a test on the source device (such as a DVD or STB) to determine how many
downstream devices are supported during an HDCP authentication with a repeater device.
6.3.1

Configurations for Testing Max Devices a Source Device Supports

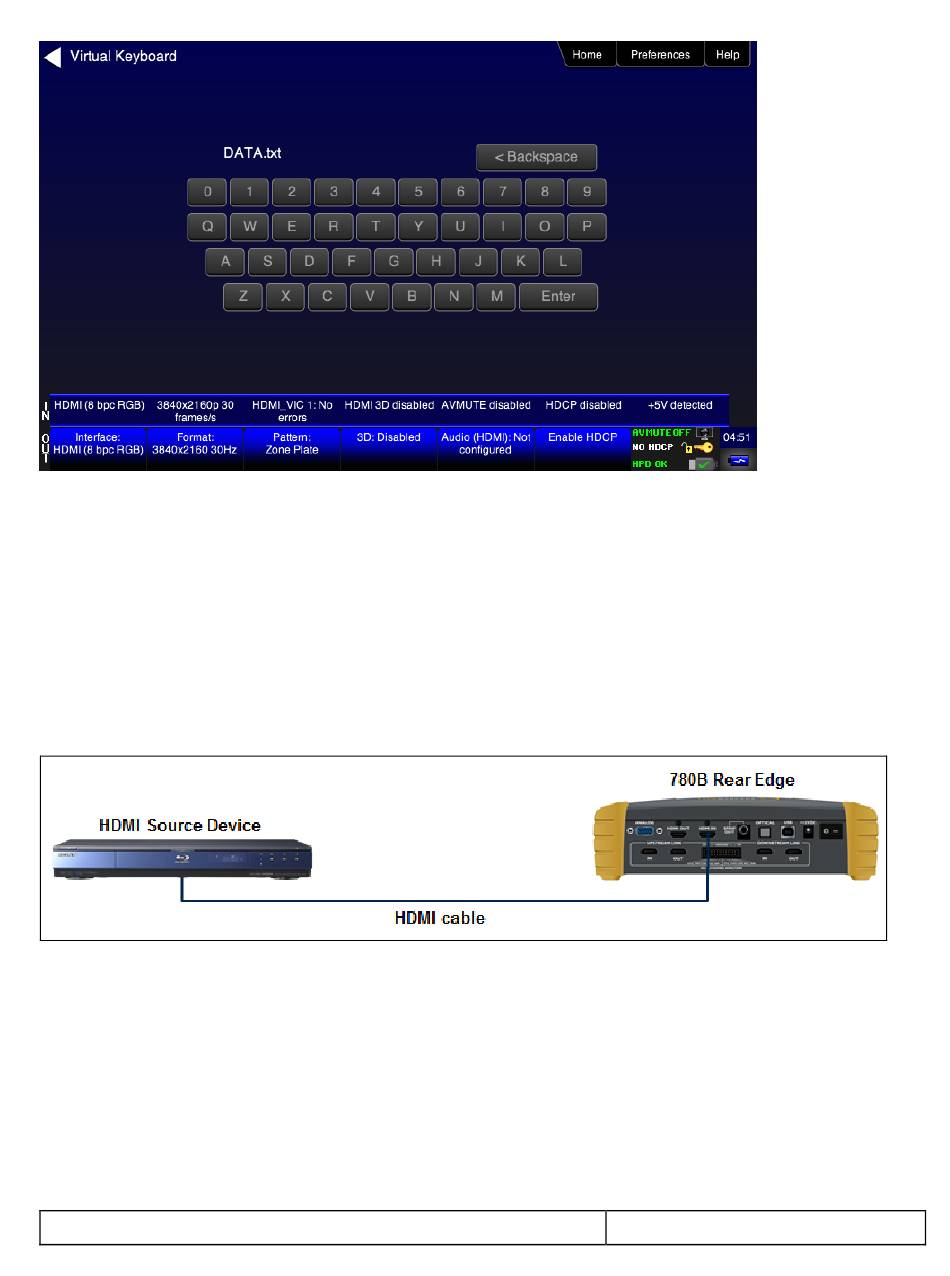

The 780B's HDMI input port acts as a "reference" HDMI sink device. Therefore it enables you to emulate a
known good HDMI sink device to conduct a test on a source device. You can run this source device connected
directly to the 780B. This test configuration is shown below.
6.3.2

Procedures for Testing Max Devices a Source Device Supports

Use the following procedures to test the maximum number of HDCP devices a source device supports.
1. Connect the HDMI system devices to the 780B as shown in the diagram above. The HDMI source device
output is connected the 780B HDMI IN connector.
2. Touch select HDCP Test from the Home menu shown below.
