780B Video Generator/Analyzer – User Guide
This subsection provides procedures for ACA monitoring of HDMI source devices, with or without a repeater
while the 780B is emulating an HDMI sink device.
Note: You will have to obtain a license key for the ACA option to use the feature.
1. Connect the HDMI system devices to the 780B in either of the ways shown in the diagrams above and
described as follows:
a. The HDMI source device output is connected the 780B HDMI IN connector.
OR
b. The HDMI repeater device output is connected to the 780B HDMI IN connector.
c. The HDMI source device output is connected to the HDMI repeater device input.

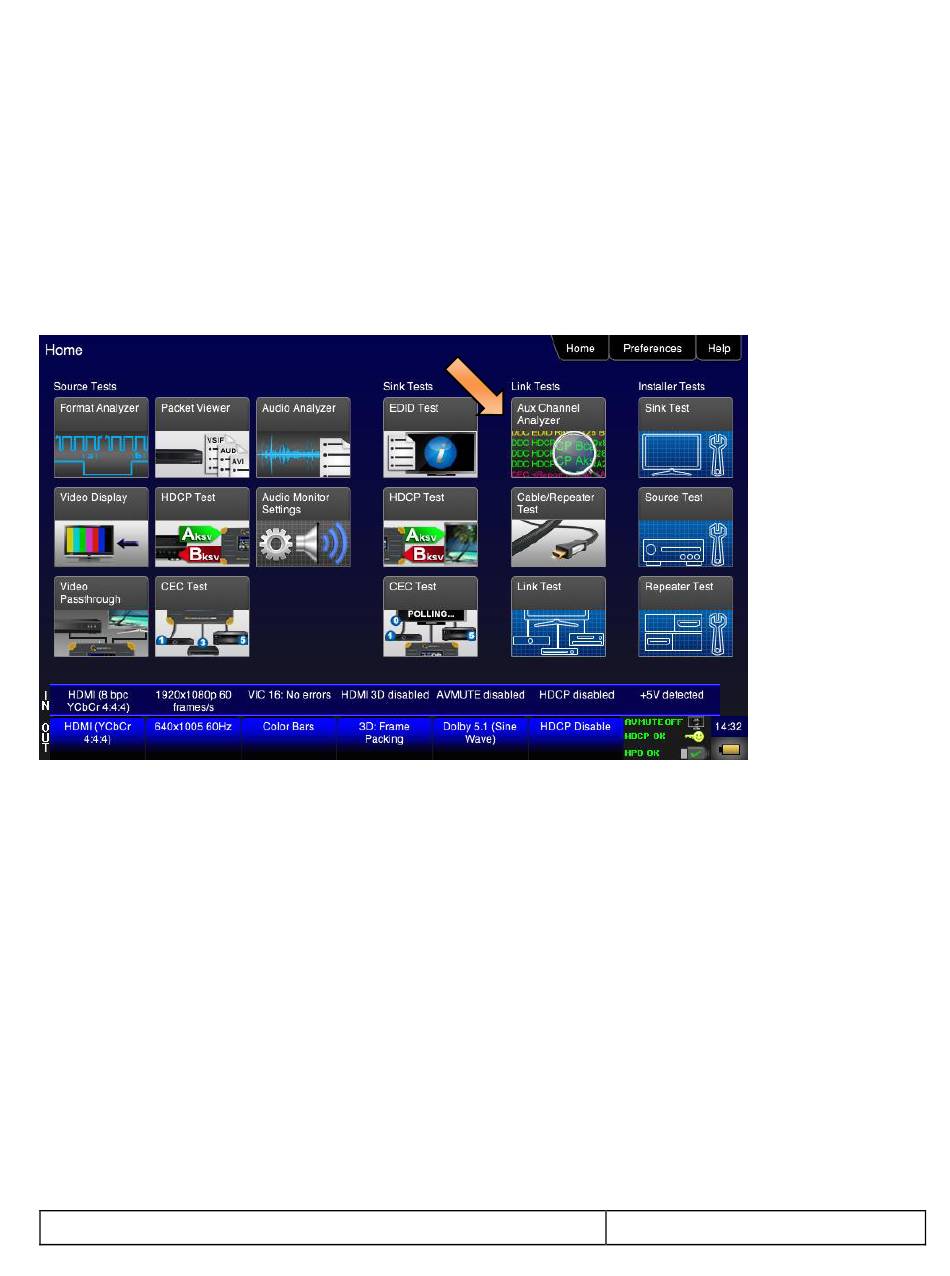

From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
The ACA Setup Options screen appears:
December 1, 2014
Page 131
Revision A7
